Thomas & Betts 756LRTP-P0360 35KV 600A DB S-OP CONN TP P0360
- MPN: 756LRTP-P0360
- UPC: 783786463190
- PPN: T-B-756LRTP-P0360
- UNSPSC: 39121421
CAD
$1704.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

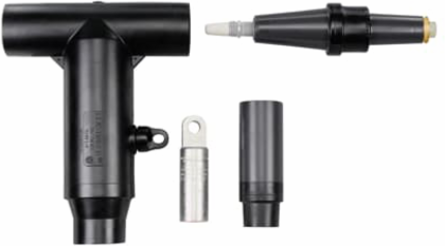

600 Amp, 35kV, Deadbreak, Stick-Op Connector Kit, with Capacitive test point, Aluminum Compression Lug. Cable Insulation Diameter 1.725 inch to 1.935 inch. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400.
Specifications
Additional Information
- Application
- Connect 600 Amp interface to 200 Amp Loadbreak Tap
- Color
- Black
- Effective Date
- 20050518
- Environmental Conditions
- All Weatheronditions °C
- Material
- Housing - EPDM Rubber
- Product Type
- Stick Op Reducing Tap Plug Connector with Test Point
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 35 kV
Brand / LabelElastimold
Current Rating600 to 200 A
Enclosure TypeYes, EPDM Rubber
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
Special FunctionsReducing Tap Plug 600 to 200 Amps. Test Point. Provides an External Visible Break by Hotstick Removal of the Elbow.
Temperature Range-40 to +65 °C
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
