Thomas & Betts 756LR-JAC01-S 35KV 600A DB TP ELBOW ASSEM JAC01S
- MPN: 756LR-JAC01-S
- UPC: 075114391191
- PPN: T-B-756LR-JAC01-S
- UNSPSC: 39121421
CAD
$1626.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

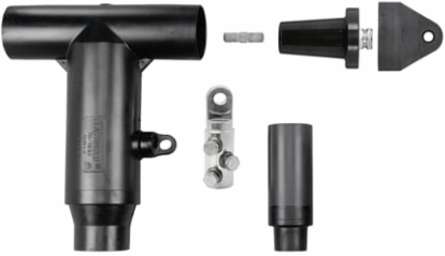

35kV, 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Shearbolt Lug and Cable Adapter). Tin-Plated Aluminum Shearbolt Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size Range for Compressed / Stranded / Compacted / Solid #2 to 300 kcmil. Cold-Shrinkable Jacket Seal Included.
Specifications
Additional Information
- Application
- 35 kv, 600 Amp
- Color
- Black
- Current Rating
- 600 A
- Environmental Conditions
- Fully Submersible
- Insulation Material
- Yes EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR>1000V
- Size
- Width 12.28 inches, 13.93 inches from Bottom Edge to Center of Installation O-Ring.
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 35 kV
Brand / LabelElastimold
Connection TypeShear Bolt
Effective Date20181211
Includes1 Elbow Housing, 1 Shearbolt Lug, 1 Stud, 1 Insulated Plug with Cap, 3 Tubes Lubricant, 1 Cable adapter, 1 Crimp Chart, Installation Instruction Sheets
MaterialHousing - EPDM Rubber
Product TypeDeadbreak Elbow Connector with Test Point
Special Functions35kV, 600 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state.
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
