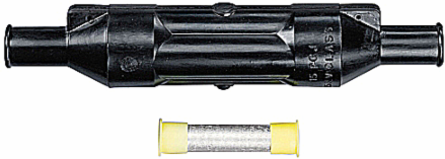

Thomas & Betts 35PCJ1Q1440-S Power Cable Joint
- MPN: 35PCJ1Q1440-S
- UPC: 078378633847
- PPN: T-B-35PCJ1Q1440-S
CAD
$1203.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35kV Power Cable Joint Style 1, Cable Insulation Diameter 1.900 inch to 2.120 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1250. Cold Shrinkable Jacket Seal included.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121452 Cable joint
- Brand Name
- Elastimold
- Special Features
- Power Cable Joints utilize permanently crimped connectors. PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other servere service applications. Units have been designed and tested per IEEE Standard 404 to ensure system matched performance and ratings equal to the cable to which the splice will be installed. Power Cable Joints are available in two styles. Style 1 uses a single-piece housing that is sized to accommodate a specific range of cable - ideally suited to straight splicing of the same or similar cable. Style 2 designs incorporate a universal housing with separate cable adapters to allow transition splices of different types and sizes of cable.
- Standard
- IEEE Standard 404
- Connection
- Compression
- Number Of Conductors
- 2
- Color
- Black
- Insulation
- Yes
IGCC4677 Cable joint
TypePower Cable Joint
ApplicationFor Direct Burial, Vault, Submersible and Other Severe Service Applications.
Size15-3/4 inch long
Conductor RangeConductor Size AWG Stranded 1250.
MaterialEPDM Rubber
Voltage Rating35kV
Packaging
- Outer Quantity
- 1
- Weight Uom
- 4.59 lbs. Each
Outer Dimensions (inches)15.5x4.75x3.62
