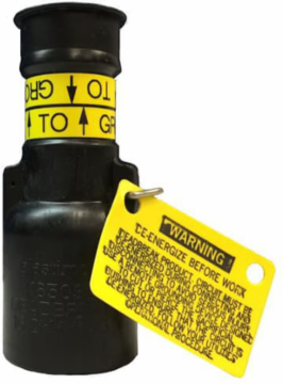

Thomas & Betts M650SL 35KV SACRIFICIAL LIMB FOR 600A
- MPN: M650SL
- UPC: 075114366526
- PPN: T-B-M650SL
- UNSPSC: 26121630
CAD
$623.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15-25 kV, 600 Amps, Sacrificial Limb, Spiking Aid Appendage. Replaceable Cap that Provides a Convenient Place to Spike the Bus to Assure that it is De-Energized. This also Assures that all Cables Connected to the Bus are De-Energized. Meets ANSI/IEEE Standard 386. 5.06 inches Long X 1.96 inch Diameter. Includes IS-1296 Instruction Sheet.
Specifications
Additional Information
| Application | 35 kV |
|---|---|
| Connection Type | Mechanical |
| Material | EPDM Rubber |
| Product Type | Sacrificial Limb, Spiking Aid Appendage |
| Special Functions | Replaceable |
| Temperature Range | -40 to +65 °C |
| Brand / Label | Elastimold |
|---|---|
| Effective Date | 20180221 |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | 5.06 inches Long x 1.96 inch Diameter |
| Standards | ANSI/IEEE Standard 386 |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
