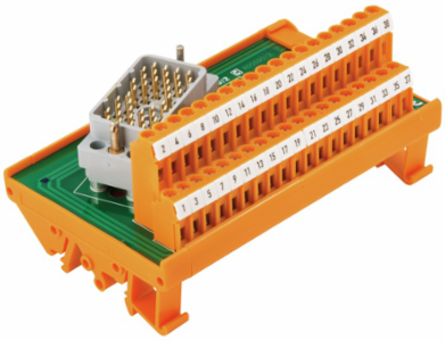

Weidmuller 9800510000 38-Way L.H. ELCO Interface Connector, 125V AC, 38-Pole Plug, 212g
- MPN: 9800510000
- PPN: WDM-9800510000
CAD
$449.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Interface, RS ELCO, ELCO type 8016, LP2N 5.08mm
Specifications
Approvals
- Approvals
- CE
ROHSConform
Dimensions And Weights
- Length
- 115 mm
- Width
- 70 mm
- Height
- 76 mm
- Net weight
- 212 g
Length (inches)4.528 inch
Width (inches)2.756 inch
Height (inches)2.992 inch
Connection Data
- Connection on control side
- ELCO type 8016
- Polarity hardware codification
- 1
- Connection (field side)
- LP2N 5.08mm
Number of poles (control side)38-pole plug
Connector alignmentLeft
Connection Field
- Type of connection
- Screw connection
- Clamping range, max.
- 6 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Min. wire cross-section, AWG
- AWG 26
- Tightening torque, min.
- 0.5 Nm
- Stripping length
- 6 mm
Clamping range, min.0.13 mm²
Solid, min. H05(07) V-U0.5 mm²
Flexible, min. H05(07) V-K0.5 mm²
Flexible with sleeve, max.2.5 mm²
Sleeve with plastic collar, max.2.5 mm²
Max. wire cross-section, AWGAWG 12
Tightening torque, max.0.6 Nm
Classifications
- ETIM 6.0
- EC002780
- eClass 9.0
- 27-14-11-52
- eClass 10.0
- 27-14-11-52
ETIM 7.0EC002780
eClass 9.127-14-11-52
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Rating Data
- Rated voltage
- 125V AC / 150V DC
Rated current per connection1.5 A
