3M 3570G-N 3M™ Scotchcast™ Connector Sealing Pack 3570G-N

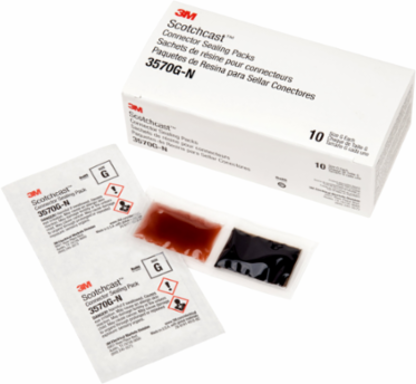

3M™ Scotchcast™ Connector Sealing Pack 3570G-N
  • MPN: 3570G-N
  • UPC: 051128591864
  • PPN: MMM-3570G-N

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$12.36/ EA

Description

3M™ Scotchcast™ Electrical Resin 3570G N insulates and offers protection for electrical spring connectors against water, dust, soil and other environmental elements. It is a 2 part, epoxy based, liquid resin provides excellent flexibility and generates its own heat to cure. This flame retardant resin is stable in applications at elevated temperatures up to 250 °F (121 °C).

Features

  • 60 Shore D hardness
  • Has 8 to 12-minute gel time at 73 °F (23 °C)
  • Safeguards electrical spring connectors against water, dust, soil and other environmental elements
  • Comes in black color
  • Includes thermo-setting resin

Specifications

Specifications

Manufacturer Catalog Number
7000133446
Cable Accessory Products
Electrical Resins
Cable Type
EPR|| Solid Dielectric Cables|| XLPE|| XLP
Connection Type
Wire
Dielectric Strength
435 Millivolt
Elongation
57 %
Flexibility
Rigid
Hardness
60 Shore D
Insulation Outside Diameter Range
0.64 - 1.01 Inch
Manufacturing Origin
USA
Maximum Wire Gauge
95mm²
Number of Conductors
3
Tensile Strength (Imperial)
1779 Pound-Force Per Square Inch
Typical Splice Length (Metric)
1320 mm
Voltage Application
Medium Voltage
Wire Gauge
Wire Connector Tools
ApplicationCable Connection
Cable ShieldingArmored|| Non-Armored Shielded
Color Family (incorporate Product Color)Black
Cure MethodRoom
Dielectric Strength (V/mil)435 V/mil
Flame RetardantYes
FormLiquid
Indoor/OutdoorBoth
Insulation Outside Diameter Range (Metric)16.3 - 25.7 mm
MaterialEpoxy
Minimum Wire Gauge35mm²
Splice TypeConnector
Typical Splice Length52.0 in
Voltage0 - 600 kV
Wire Connector TypeWire Connector Tools

Packaging

Package Length
5.75000 in
Package Weight
0.4000 LBS
Package Height1.75000 in
