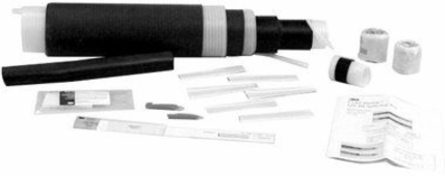

3M 5468A Cold Shrink QS-III Splice Kit, 35 kV, 350-1000 kcmil, Insulation O.D. 1.24-2.07 Inch
- MPN: 5468A
- UPC: 054007430629
- PPN: MMM-5468A
CAD
$2850.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QS-III Splice Kit, 35 kV, 350-1000 kcmil, Insulation O.D. 1.24-2.07 Inch
Specifications
Key Specifications
| 3M ID | 80611232085 |
|---|---|
| Brand | 3M™ |
| Case Quantity | 1 |
| Connector Included | None |
| Insulation Outside Diameter Range | 1.24 - 2.07 Inch |
| Minimum Wire Gauge | 185mm² |
| Product Series | 5467A & 5468A Series |
| Product Type | Cold shrinking |
| RoHS EU Comments | Contact 3M for information |
| Splice Type | QS-III, inline |
| Voltage | 35 kV |
| Applications | Cable Connection |
|---|---|
| Cable Type | Cable with XLPE insulation |
| Conductor Sizes | 1000 kcmil, 350 kcmil, 500 kcmil, 750 kcmil |
| Insulation O.D. Range | 1.24 - 2.07 Inch |
| Maximum Wire Gauge | 500mm ² |
| Number of Conductors | 1 |
| Product Technology | Cold Shrink |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Concentric Neutral (CN), Jacketed Concentric Neutral (JCN) |
| Trademark | 3M |
| Voltage Application | Medium Voltage |
