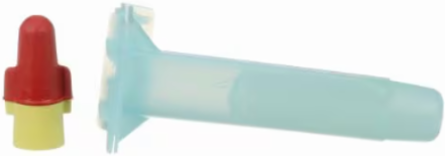

3M DBR/Y-6 BULK 3M Direct Bury Splice Kit DBR/Y-6(BULK), 18-10 AWG, 100 per case
- MPN: DBR/Y-6 BULK
- UPC: 051128585740
- PPN: MMM-DBR/Y-6-BULK
CAD
$4.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
3M Direct Bury Splice Kit DBR/Y-6(BULK), 18-10 AWG, 100 per case
Specifications
Key Specifications
| 3M ID | 80611457195 |
|---|---|
| Brand | 3M™ |
| Conductor Size | 18 - 10 AWG |
| Connection Type | Wire |
| Family | Direct Bury |
| Insulation Material | Tube is UV resistant Polypropylene |
| Maximum Operating Temperature (Fahrenheit) | 221 Degree Fahrenheit |
| Maximum Wire Gauge | 10 AWG |
| Operating Temperature (Celsius) | -40 °C to 105 °C |
| Operating Temperature Range (Celsius) | -40 °C to 105 °C |
| Product Type | Connector |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| Wire Connector Type | Direct Bury Splice Kit |
| Agency Approvals | UL |
|---|---|
| China RoHS - Below MCV | RoHS 2011/65/EU Compliant, Yes |
| Conductor Sizes | 18 - 10 AWG |
| Connector Style | Direct Bury |
| Flame Retardant | UL-94 V-2 |
| Maximum Operating Temperature (Celsius) | 105 Degree Celsius |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Wire Gauge | 18 AWG |
| Operating Temperature (Fahrenheit) | -40 °F to 221 °F |
| Operating Temperature Range (Fahrenheit) | -40 °F to 221 °F |
| RoHS 2011/65/EU Compliant | RoHS 2011/65/EU Compliant, Yes |
| Trademark | Scotchlok |
