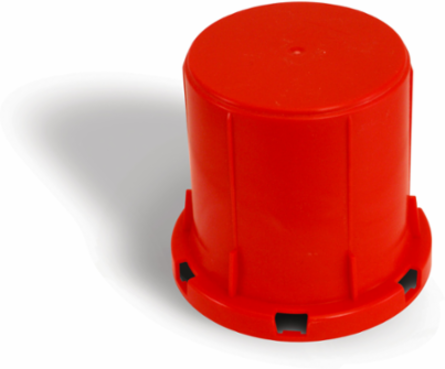

3M 6HA Fire Barrier Cast-In Device Height Adapter, 6 Inch, Adds Up to 4 Inch, 3 Hour Fire Rating
- MPN: 6HA
- PPN: MMM-6HA
CAD
$44.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

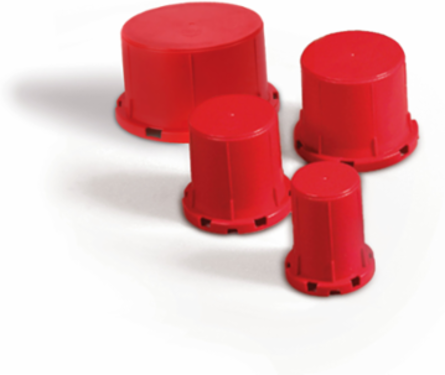

3M™ Fire Barrier Cast-In Device Height Adaptors are 1-piece extensions that provide up to 4 of additional height to 3M™ Fire Barrier Cast-In Devices. No fasteners are required and installers simply snap the adaptor onto a metallic or non-metallic Cast-In Device. Adaptors adjust to accommodate concrete slab pour depths up to 12 thick. Adaptor/device assemblies are firestop tested up to 3 hours.
Features
- Designed for use with 3M™ Fire Barrier Cast-In Devices for firestopping through penetrations
- Adds up to 4 inches (101.6 mm) to height of device for deeper concrete pours
- Easy snap-on assembly saves time and requires no fasteners
- For special applications, adaptors can be modified to accommodate deeper concrete pours
- When used in conjunction with Fire Barrier Cast-In Devices, Height Adaptors are firestop tested for up to 3-hours in accordance with ASTM E 814 (UL 1479)
Documentation & Downloads
Specifications
Key Specifications
- Manufacturer Catalog Number
- 7000133839
- Fire Rating
- 3 Hour
- Overall Diameter (Metric)
- 152 mm
- Water-tight
- No
Color Family (incorporate Product Color)Red
Overall Diameter (Imperial)6 in
Suggested Application 1Typically used in new installations when the concrete slab thickness will be greater than 8 inches (203.2 mm).
