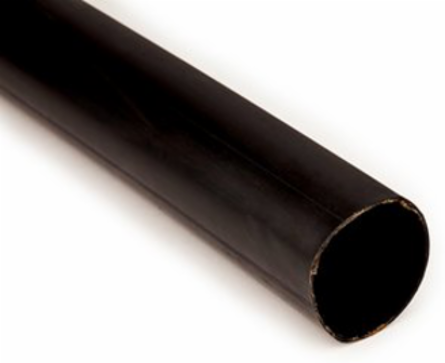

3M IMCSN-1500-48A Heat Shrink Medium-Wall Cable Sleeve, 1-0 to 250 kcmil, 48 Inch, 3:1 Shrink Ratio
- MPN: IMCSN-1500-48A
- UPC: 054007588139
- PPN: MMM-IMCSN-1500-48A
CAD
$71.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heat Shrink Medium-Wall Cable Sleeve, 1-0 to 250 kcmil, 48 Inch, 3:1 Shrink Ratio
Specifications
Key Specifications
| 3M ID | 80610677637 |
|---|---|
| Brand | 3M™ |
| Expanded Inner Diameter | 1.5 Inch |
| Family | 3M™ Heat Shrink Medium-Wall Cable Sleeves IMCSN for 1 kV |
| Length | 48 Inch |
| Material | Cross-linked Polyolefin |
| Operating Temperature (Celsius) | -55 to 100 Degrees Celsius |
| Operating Temperature Range (Celsius) | -55 °C to +105 °C |
| Recovered Inner Diameter | 0.5 Inch |
| RoHS 2011/65/EU Compliant | Yes |
| Shrink Ratio | 3:1 |
| Trademark | 3M |
| Voltage Rating | 1 kV |
| Adhesive Lined | Yes |
|---|---|
| Color | Black |
| Expanded Inner Diameter (metric) | 38.1 mm |
| Flame Retardant | No |
| Length (Metric) | 1.22 m |
| Minimum Expanded Tubing I. D. | 1.5 Inch |
| Operating Temperature (Fahrenheit) | -67 °F to 230 °F |
| Operating Temperature Range (Fahrenheit) | -67 °F to 230 °F |
| Recovered Inner Diameter (metric) | 10.9 mm |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| Solution for | Access Network: FTTH/FTTB/CATV, Access Network: xDSL, Long-haul/Metro Loop Network: CO/POP, Long-haul/Metro Loop Network: Outdoor, Wireless Network: Backhaul |
| Tubing Type | Medium Wall |
