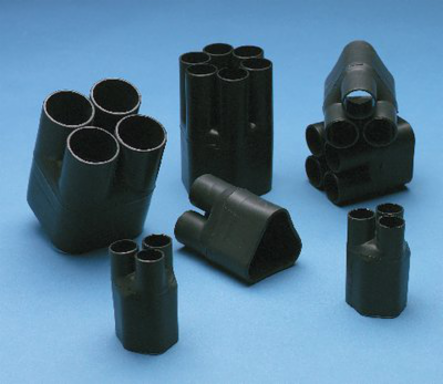

3M HDBB-345-1-250 Heat Shrink Cable Breakout Boot, 3-Way, 1/0 AWG, 2 Inch Conductor Legs, Black

MPN: HDBB-345-1-250
UPC: 054007587941
PPN: MMM-HDBB-345-1-250

$258.87

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Heat Shrink Cable Breakout Boot, 3-Way, 1/0 AWG, 2 Inch Conductor Legs, Black

Specifications

Key Specifications

3M ID	80610677520
Brand	3M™
Cable End Recovered	2.32 Inch
Cable Insulation Outside Diameter Range (metric)	22.1-26.8 mm
Conductor Legs Expanded	2 Inch
Conductor Sizes	1/0 AWG
Connector Included	CIR-1/0
Flame Retardant	Yes
Lug/Stem Connector Included in Kit	No
Number of Conductors	1
Outlet Style	3-Way
Product Technology	Molded Rubber
RoHS 2011/65/EU Compliant	Yes
Shielding Type	Concentric Neutral (CN), Jacketed Concentric Neutral (JCN)
Trademark	3M™

Agency Approvals	NAVSEA, DOD-STD-2003-1
Cable End Expanded	4.9 Inch
Cable Insulation Outside Diameter Range	0.87-1.06 in
Color	Black
Conductor Legs Recovered	1 Inch
Conductor Sizes - Stranded - Cable Insulation Thickness	1/0 (295 mils), 1/0 AWG (260 mils), 1/0 AWG (280 mils)
Family	3M™ Heat Shrink Heavy Duty Breakout Boots HDBB
Indoor/Outdoor	Both
Material	Semi-Rigid, Flame Retardant Polyolefin
Number of Outlets	3
Product Series	5450 Series
Product Type	Cables and Wires Accessories, Splice
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Splice Type	Inline Repair
Voltage	25 kV, 28 kV
