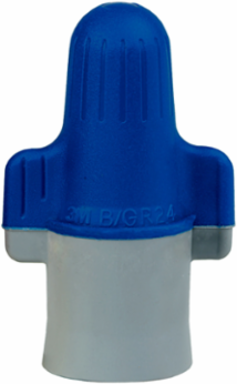

3M B/G+POUCH 3M™ Performance Plus™ Wire Connector B/G+Pouch, 50/Pouch
- MPN: B/G+POUCH
- UPC: 054007431503
- PPN: MMM-B/G POUCH
CAD
$0.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible springthat has generous room for expansion and a strong bite for a secure connection. Becauseof their increased wire range, just three Performance Plus wire connectors handle thework of eight standard connectors. And theflexible skirt helps prevent copper exposure for enhanced safety.
Features
- Strong bite for a secure, reliable connection
- Flexible spring expands for greater wire range and reuse
- Dual color coded: one connector does the job of two traditional connectors in the majority of applications
- UL Listed
Documentation & Downloads
Specifications
Key Specifications
- Manufacturer Catalog Number
- 7100127167
- Connection Type
- Wire
- Flame Retardant
- Yes
- Insulation Color
- Blue/Gray
- Interrupt Free Shifting
- No
- Material
- Plastic
- Maximum Insulation Outer Diameter (Metric)
- 3.7 mm
- Maximum Operating Temperature (Celsius)
- 105 Degree Celsius
- Maximum Recommended Voltage Rating
- 600 V
- Maximum Wire Gauge
- 6 AWG
- Minimum Wire Gauge
- 14 AWG
- Wire Connector Type
- Twist-on Wire Connectors
Color Family (incorporate Product Color)Multi-Color
Connector StyleTwist On
Grease Filling Against CorrosionNo
Insulation MaterialPolypropylene and thermoplastic elastomer
Manufacturing OriginUSA
Maximum Conductor Size6 AWG
Maximum Insulation Outside Diameter0.145 in
Maximum Operating Temperature (Fahrenheit)221 Degree Fahrenheit
Maximum Voltage Rating600 V (1000 V in signs, lighting fixtures and luminaries)
Minimum Conductor Size14 AWG
Voltage Rating600 V
Wire GaugeTwist-on Wire Connectors
Packaging
- Package Length
- 6.50000 in
- Package Weight
- 0.7100 LBS
Package Height10.00000 in
