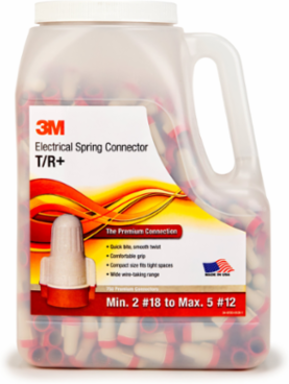

3M T/R+JUG 3M™ Performance Plus™ Wire Connector T/R+JUG, 750 per Jug, smooth,comfortable feel
- MPN: T/R+JUG
- UPC: 051128544556
- PPN: MMM-T/R JUG
CAD
$0.16
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible springthat has generous room for expansion and a strong bite for a secure connection. Becauseof their increased wire range, just three Performance Plus wire connectors handle thework of eight standard connectors. And theflexible skirt helps prevent copper exposure for enhanced safety.
Features
- Strong bite for a secure, reliable connection
- Flexible spring expands for greater wire range and reuse
- Dual color coded: one connector does the job of two traditional connectors in the majority of applications
- UL Listed
Documentation & Downloads
Specifications
Key Specifications
- Manufacturer Catalog Number
- 7100019140
- Connection Type
- Wire
- Flame Retardant
- Yes
- Material
- Plastic
- Maximum Insulation Outer Diameter (Metric)
- 3.7 mm
- Maximum Operating Temperature (Celsius)
- 105 Degree Celsius
- Maximum Recommended Voltage Rating
- 600 V
- Maximum Wire Gauge
- 8 AWG
- Minimum Wire Gauge
- 22 AWG
- Wire Connector Type
- Twist-on Wire Connectors
Color Family (incorporate Product Color)Multi-Color
Connector StyleTwist On
Manufacturing OriginUSA
Maximum Conductor Size8 AWG
Maximum Insulation Outside Diameter0.145 in
Maximum Operating Temperature (Fahrenheit)221 Degree Fahrenheit
Maximum Voltage Rating600 V (1000 V in signs, lighting fixtures and luminaries)
Minimum Conductor Size22 AWG
Voltage Rating600 V
Wire GaugeTwist-on Wire Connectors
Packaging
- Package Height
- 10.38000 in
Package Weight5.5450 LBS
