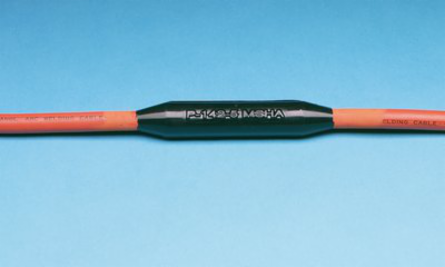

3M 82-F1 3M Scotchcast Flexible Power Cable Splice Kit 82-F1, Cable Insulation O.D. 0.25-0.80 in (6,4-20,3 mm), 10 per case

3M Scotchcast Flexible Power Cable Splice Kit 82-F1, Cable Insulation O.D. 0.25-0.80 in (6,4-20,3 mm), 10 per case

3M 82-F1 3M Scotchcast Flexible Power Cable Splice Kit 82-F1, Cable Insulation O.D. 0.25-0.80 in (6,4-20,3 mm), 10 per case

MPN: 82-F1
UPC: 051128591765
PPN: MMM-82-F1

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$230.69/ EA

Loading add to cart quantity...

Description

3M Scotchcast Flexible Power Cable Splice Kit 82-F1, Cable Insulation O.D. 0.25-0.80 in (6,4-20,3 mm), 10 per case

Specifications

Specifications

3M ID: 80008006506

Cable Type: Cable with rubber insulation

Conductor Sizes for 1 kV and less: 1 AWG, 1/0 AWG, 2 AWG, 4 AWG, 6 AWG

Insulation O.D. Range: 0.25 - 0.80 Inch

Maximum Wire Gauge: 50mm ²

National Stock Number: 7530015573160

Product Series: 82-F Series

Product Type: Splice

Splice Type: Inline

Voltage: 1 kV, 5 kV

ApplicationsCable Connection

China RoHS - Below MCVNo

Conductor Sizes for 5 kV1 AWG, 1/0 AWG, 2 AWG, 4 AWG, 6 AWG

Insulation Outside Diameter Range0.25 - 0.80 Inch

Minimum Wire Gauge16mm ²

Number of Conductors3, 4

Product TechnologyResin

Shielding TypeMultiple Conductor Portable Cable, Non-shielded, Single Conductor Portable Cable

TrademarkScotchcast

Voltage ApplicationLow Voltage
