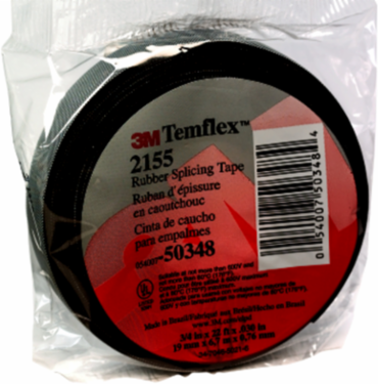

3M 2155-3/4x22FT 3M™ Temflex™ Rubber Splicing Tape 2155, 3/4 in x 22 ft, Black, 20rolls/Case
3M 2155-3/4x22FT 3M™ Temflex™ Rubber Splicing Tape 2155, 3/4 in x 22 ft, Black, 20rolls/Case
- MPN: 2155-3/4x22FT
- PPN: MMM-2155-3/4X22FT
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$11.55/ EA
Description
3M™ Temflex™ Tape 2155 is a 30 mil, general purpose, highly conformable, electrically insulating, low voltage rubber splicing tape. The self fusing tape is designed to offer guaranteed performance when used with solid dielectric cable insulations and has a liner, which will not stick to the tape upon unwind. It withstands a wide temperature range of 176 °F (80 °C).
Features
- Rubber resin provides excellent adherence
- Self-fusing rubber backing offers durability and resists tears as well as abrasion
- Withstands temperatures up to 176 °F (80 °C)
- UL Listed and RoHS 2011/65/EU Compliant
Specifications
Specifications
- Manufacturer Catalog Number
- 7000089970
- Application
- Electrical Maintenance|| Insulation
- Backing Thickness (Metric)
- 0.76 mm
- Color Family (incorporate Product Color)
- Black
- Elongation
- 700 %
- Gel Time
- 28 Minutes at 140°F (60°C)
- Insulated
- Yes
- Maximum Operating Temperature (Celsius)
- 80 Degree Celsius
- Minimum Operating Temperature (Celsius)
- 0 Degree Celsius
- Overall Length (Imperial)
- 22 ft
- Overall Width (Imperial)
- 0.75 in
- Self-extinguishing
- No
- Shelf Life
- 3 Year
- Tape Color
- Black
- Tape Type
- General Use Rubber Tape
- Tape Width (Metric)
- 19.1 mm
- Tensile Strength (Imperial)
- 300 Pound-Force Per Square Inch
- Tensile Strength (Metric)
- 2068.4 kPa
- Total Thickness
- 0.76 mm
- Voltage Rating
- 600 V
Adhesive MaterialRubber Resin
Backing MaterialRubber
Breaking Strength (Imperial)9 lb/in
Dielectric Strength (V/mil)600
Elongation at Break7
High Temperature Rating176°F (80°C)
Liner/LinerlessLiner
Maximum Operating Temperature (Fahrenheit)176 Degree Fahrenheit
Operating Temperature (Fahrenheit)Up to 176 °F
Overall Length (Metric)6.7 m
Overall Width (Metric)19 mm
Self-stickingYes
Suitable for High VoltageNo
Tape GradeGeneral Use
Tape Width (Imperial)0.75 in
Temperature Protected Till80 Degree Celsius
Tensile Strength lb/in (N/100 mm)9 (158)
Total Tape Thickness without Liner (Metric)0.76 mm
UV ResistantNo
VulcanizingYes
