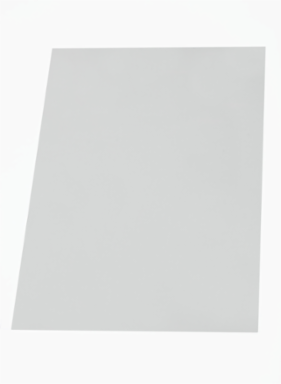

3M 7100091560 3M™ Thermally Conductive Interface Tape 8926-02, 600 mm x 40 m x 0.20 mm, 1/Case
- MPN: 7100091560
- UPC: 08806080040125
- PPN: MMM-8926-02
CAD
$4756.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
3M™ Thermally Conductive Interface Tape 8926-02 is a 0.20 mm pressure-sensitive tape designed to have good converting ability, handing and re-workability through the introduction of a thin PET carrier. 3M tape Series 8926 is designed with a soft acrylic polymer and multiple thickness options to allow excellent wet-out or conformability to many surfaces.
Features
- Good thermal conductivity (>1.5W/m-K)
- Excellent dielectric performance
- Low thermal impedance
- Good and reliable adhesion performance to Al and SS
- Vibration damping
- Can be used for heat management
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | South Korea |
|---|---|
| Overall Length (Imperial) | 43.75 |
| Overall Length (Metric) | 40.0 |
| Overall Width (Imperial) | 23.62 |
| Overall Width (Metric) | 600.0 |
| Thermal Conductivity (X-Y Axis) | 0.0 |
| Adhesive Type | Acrylic |
| Dielectric Strength | 15.0 kV/mm |
| Product Usage | COF Chips; Integrated Circuit Chips; LED Lighting Systems |
| Specifications Met | UL 94 V-0 |
| Total Tape Thickness without Liner (Imperial) UOM | mil |
| Total Tape Thickness without Liner (Metric) UOM | mm |
| Application | Bonding, Heat Dissipation, Thermal Management |
|---|---|
| Overall Length (Imperial) UOM | yd |
| Overall Length (Metric) UOM | m |
| Overall Width (Imperial) UOM | in |
| Overall Width (Metric) UOM | mm |
| Thermal Conductivity (Z Axis) | 1.5 W/m-K |
| Base Material | Acrylic |
| Product Color | White |
| Shelf Life | 18.0 Month |
| Total Tape Thickness without Liner (Imperial) | 7.874 |
| Total Tape Thickness without Liner (Metric) | 0.2 |
| Units per Case | 1.0 |
