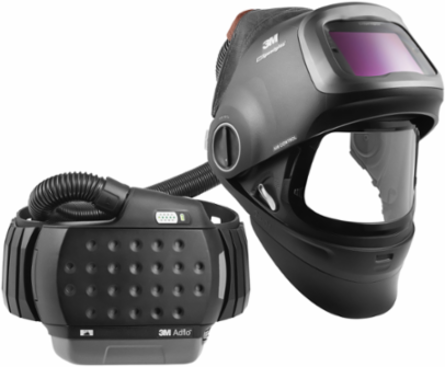

3M 7100349662 3M™ Speedglas™ G5-01 Heavy-Duty Welding Helmet with 3M™ Adflo™ PAPR Assembly 46-1101-30TW, G5TW ADF, 1 EA/Case
- MPN: 7100349662
- UPC: 068060858597
- PPN: MMM-46-1101-30TW
CAD
$4227.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The 3M™ Speedglas™ G5-01 Heavy-Duty Welding Helmet with 3M™ Adflo™ PAPR Assembly uses next-generation technology to help provide dynamic welding protection. Intuitively designed for the challenges faced on the job, this ergonomic helmet setup includes a clear, wide-view protective visor for grinding and related jobs. Use the welding technology of the future, today — equip the 3M™ Speedglas™ G5-01 Heavy-Duty Welding Helmet with 3M™ Adflo™ PAPR Assembly.
Features
- The big (104 mm x 170 mm), clear protective visor is curved, providing excellent viewing angles up, down, and peripherally
- A slim profile makes the 3M™ Speedglas™ G5-01 Heavy-Duty Welding Helmet lightweight and easy to utilize in tight welding spaces
- The system is NIOSH approved and provides an Assigned Protection Factor (APF) of 25 in our standard helmet assembly, and up to 1000 APF with our optional kit
- With the right type of filter and/or cartridge, the 3M™ Adflo™ High-Altitude PAPR Assembly effectively protects you against both particles and gases — all in one system
- For more comfort control the innovative 3M™ Speedglas™ G5-01 Heavy-Duty Welding Helmet lets you direct the airflow to either your face, visor, or somewhere in-between
- Kit contains a complete 3M™ Speedglas™ G5-01 Helmet Assembly, lithium-ion battery, charger, high-efficiency particulate filter, prefilter, spark arrestor, wide leather belt, and self-adjusting breathing tube;
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Grinding Option | Flip-up with Clear Visor |
| Lens Shade | 8 - 13 |
| Viewing Area (Metric) | 71 mm x 108 mm |
| ADF Dark State Shades | Variable 5, 8-13 |
| ADF Viewing Area (Metric) | 71 mm x 108 mm |
| Breathing Tube Grade | Standard |
| Dark Shades | Shade 5, 8-13 |
| Intrinsically Safe | No |
| NIOSH Cartridge or Filter Assigned Color Coding | Magenta |
| Partial Charge Time | 80% in approx. 3 h |
| Product Color | Black |
| Product Type | Welding Respiratory Systems |
| Sensitivity | 5 Level (TIG>1A & MIG/MAG, Stick) |
| Specifications Met | ANSI Z87.1-2015, Assigned Protection Factor (APF) = 25, NIOSH Approved |
| Switching Time | 40 – 1300 ms |
| User Type | Professional |
| Welding | Yes |
| Air Source | PAPR |
|---|---|
| Lens Type | Auto-darkening |
| Viewing Area (Imperial) | 2.8 in x 4.25 in |
| Side Windows | No |
| ADF Shade Range | Variable 5, 8-13 |
| Battery Type | Turbo: Lithium-ion |
| Cartridge or Filter Included | HE Filter |
| Headgear Type | Welding Helmet with Grinding Visor |
| Mounting Type | Belt-mounted |
| Operating Temperature (Celsius) | -5°C to +55°C |
| Product Code | 46-1101-30TW |
| Product Series | G5 |
| Recommended Industry | General Manufacturing, Heavy Infrastructure |
| Series Type | Adflo |
| Storage Temperature (Celsius) | -20°C - 55°C |
| Switching Time (Light-Dark) | 0.1 ms @ 73°F (23°C) |
| Visor Type | Clear Visor and Auto-Darkening Welding Lens |
| Welding Process | Most types of arc welding, arc detection down to 1 amp TIG, grinding. |
