3M HDCW-55/15-1000 3M Wraparound Heat Shrink Cable Repair Sleeve HDCW-55/15-1000, Length 39.4 in (1000 mm), 5 per case
- MPN: HDCW-55/15-1000
- UPC: 04001895590887
- PPN: MMM-HDCW55/15-1000
CAD
$268.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

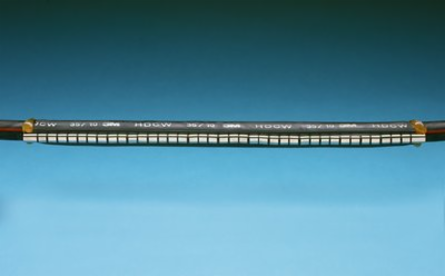

3M Wraparound Heat Shrink Cable Repair Sleeve is designed to repair damaged cable sheaths. It is also suitable for use with cable joints and as additional corrosion protection on undamaged cables.
Specifications
Key Specifications
| Voltage | 8 kV, 35 kV, 25/28 kV, 1 kV, 15 kV |
|---|---|
| Trademark | 3M |
| Length | 39.4 Inch |
| Sleeve Length | 39.4 Inch |
| Material | Adhesive-lined, Cross-Linked Polyolefin |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| RoHS 2011/65/EU Compliant | Yes |
| Splice Type | Heat Shrink |
|---|---|
| Family | 3M Heat Shrink Wraparound Cable Repair Wrap Sleeve HDCW |
| Minimum Expanded Tubing I. D. | 2.68 Inch |
| Product Type | Splice |
| Conductor Sizes | 250 kcmil, 3/0 AWG, 400 kcmil, 300 kcmil, 4/0 AWG, 350 kcmil |
| Splice Configuration | Heat Shrink Cable Repair Wrap Sleeve (HDCW) |
