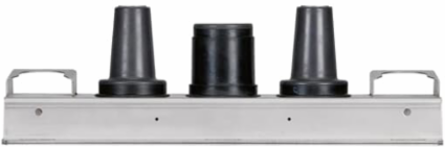

Thomas & Betts J3-266-15-TMA 3POINT JUNCT 15KV TILT MOUNT ADAP
- MPN: J3-266-15-TMA
- UPC: 783786384907
- PPN: T-B-J3-266-15-TMA
- UNSPSC: 26121630
CAD
$2507.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
3 Point Junction, with one 200 Amp Bushing Well Interface and two 600 Amp Bushing Interface, 15kV, Tilt Mounting Adapter.
Specifications
Additional Information
| Application | Suited for Subsurface, Vault or Padmount Applications and can be used for Sectionalizing, Looping, Tapping and Equipment Bypass. |
|---|---|
| Connection Type | Push-In |
| Material | EPDM Rubber and Stainless Steel Mounting Brackets. |
| Product Name | ELECTRICAL JUNCTION,>1000V |
| Size | Overall Length 19 inches, Width 6-3/4 inches. |
| Standards | ANSI/IEEE Standard 386 |
| Brand / Label | Elastimold |
|---|---|
| Effective Date | 20030120 |
| Mounting Type | Tilt Mounting Adapter. |
| Product Type | Multi-Point Junction - 3 Points |
| Special Functions | 4 inch Center Spacing. |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
