Superstrut

Superstrut X207 Fittings, Brackets & Hardware

Fittings, Brackets & Hardware
Fittings, Brackets & Hardware
  • MPN: X207
  • UPC: 061601326005
  • PPN: T-B-X207

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$9.29/ EA

Description

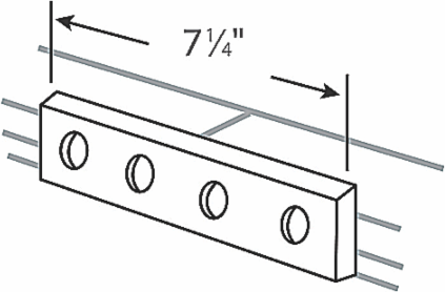

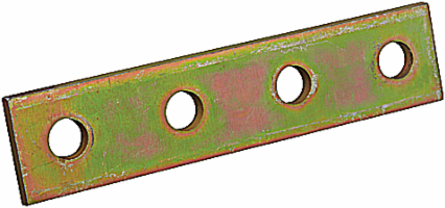

Plate, Four Hole Splice, Length 7-1/4 Inch, Width 1-5/8 Inch, Hole Diameter 9/16 Inch, Steel

Features

  • Excellent corrosion reisistance

Specifications

North American Specifications (UNSPSC)

UNSPSC
31162810 Splices or splice plates
Brand Name
Superstrut
Special Features
Excellent corrosion reisistance
Overall Length
7-1/4 Inches
IGCC3048 Splices or splice plates
TypeFittings, Brackets & Hardware
ApplicationFor use in metal framing applications

European Specifications (ETIM)

ETIM
EC000483 Coupler for support/profile rail
Model
Flat coupler
Material
Steel
Suitable forU-profile
With screw accessoriesN

Packaging

Outer Quantity
25
Weight Uom
62.5 lbs. per 100
Outer Dimensions (inches)7.75x4.75x4.75
