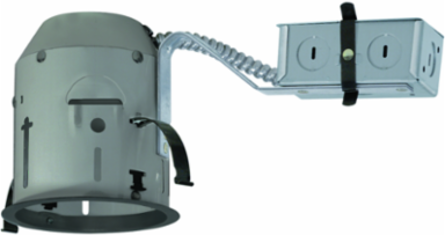

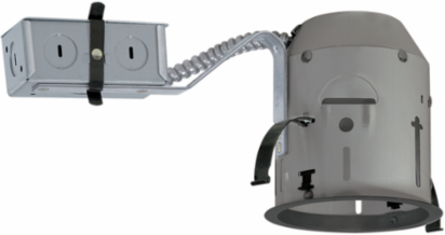

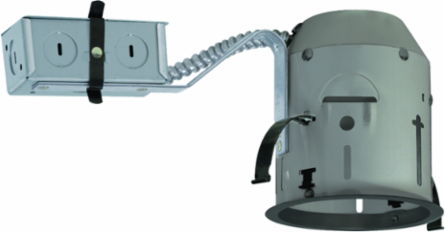

Acuity Brands TC1R LITH TC1R 4IN Incandescent Remodel
- MPN: TC1R
- UPC: 661209017987
- PPN: LTH-TC1R
- UNSPSC: 39111515
CAD
$18.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Design Select
Features
- If installed where insulation is present, the insulation must be pulled back 3” from all sides of the TC housing.
- TC1R, recommended lamps: R14/R16/R20/PAR16/PAR20
- Housings include medium base porcelain socket with nickel-plated copper screw shell
- UL Listed, CSA certified to US and Canadian standards, Listed for damp locations
- Standard 120 volts used in most residential applications
- Does not include light source
- Air-Loc housing stops infiltration and exfiltration of air, reducing heating and cooling costs
- Emergency battery back-up not included in this version
- 1-year limited warranty

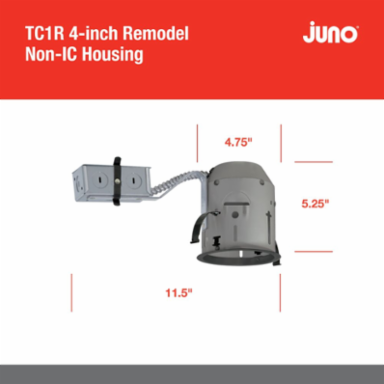

- Dimensions: Height 5 1/4-in. x Width 6-3/4-in. x Full Width 13-1/2-in. x Length 9-1/8-in. x Full Length 12-1/8-in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Number of Lamps
- 1
- Length
- 11.5 IN
- Height
- 5.25
- Type
- Housing
Lamp TypeIncandescent
MountingRecessed
Width4.75 IN
Aperture Size4 IN IN
