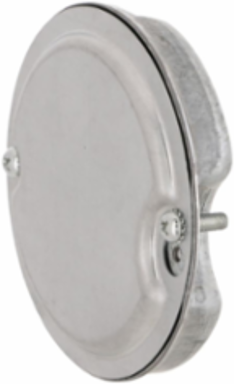

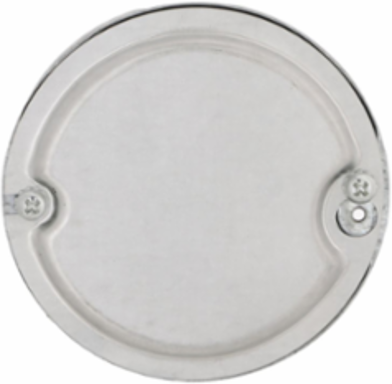

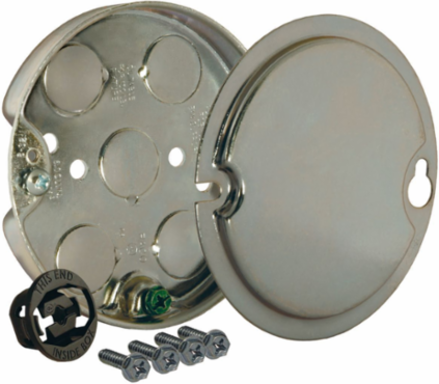

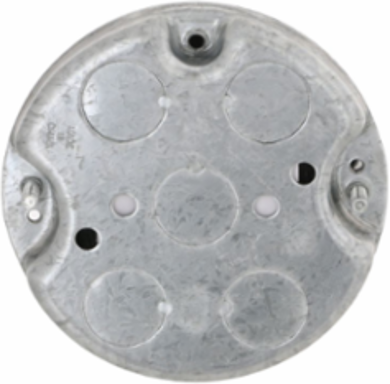

Raco 295 4 Inch Round Ceiling Rated Fan Pan, 1/2 Inch Depth, 6.0 cu. in. Capacity, Steel
- MPN: 295
- UPC: 050169002957
- PPN: HBL-295
- UNSPSC: 39121316
CAD
$14.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4 in. Round Ceiling Rated Fan Pan, 1/2 in. Depth, Five 1/2 in. KO's
Features
- Steel construction
- No protruding ground screw or fan mounting screws allows easy installation
- Metal protection plate elimates debris or damage to wiring
- With proper fitting can be used for conduit, NMSC, armored, metal clad, flex cable
- Maximum support load for ceiling fans 70 lbs. and 150 lbs. for static light fixtures
- Supplied with five 1/2 in. knockouts
- Easy to follow instructions and mounting hardware included
- 6.0 cu. in. capacity
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Depth | 0.5 in |
| Height | 4.38 in |
| Size | 4 in |
| Knockouts | 1/2 in |
| Type | Ceiling Pan |
| Width | 4.38 in |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | 4RND PAN CEILFAN 1/2DP 1/2KO |
| Harmonization Code | 7326908688 |
| Lead Time | 105 wk |
| Order Multiple | 10 EA |
| Stock Indicator | S - Shelf Stock |
| Ceiling Fan Lbs. | 70 lb. |
| Drawn or Welded | Drawn |
| Raised Ground | Yes |
| Series | THE INSIDER® Series |
| BOX SIZE | 4.75x10.75x5 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 50169002957 |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70050169002956 |
| Pallet - Pack Description | Pallet |
| Pallet - Total Units | 2560 EA |
| Pallet Length | 48.000 in |
| Pallet Width | 42.000 in |
| Actual Depth | 1.13 in |
|---|---|
| Description - Slang | Round Ceiling Rated Pan |
| Product Type | Steel Boxes and Covers |
| Cubic Capacity | 6.0 cu.in |
| Standard | UL Listed |
| Weight | 0.64 lb. |
| Fixture Type | Ceiling;Light |
| Class Code | D01 |
| Freight Class Code | 06202000 |
| Image Actual Or Representative | A |
| MSDS Flag | Yes |
| Returnable Indicator | Yes |
| Sub Class Code | D014D0140 |
| Ceiling Fan Rated | Yes |
| Fixture Lbs. | 150 lb. |
| Material | Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 6.4 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Lowest Level UOM | Each |
| Pallet - Number of Sub Packs | 256 |
| Pallet - SCC-14 Next Lower Level Sub Pack | 50050169002952 |
| Pallet Height | 44.500 in |
| Pallet Weight | 1683.400 lb. |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|
| Certified Listed | UL Listed |
|---|
