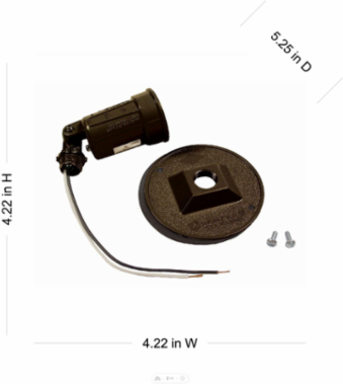

Bell 5624-2 4 Inch Round Weatherproof Combination Cover for PAR 38 Lamps, Bronze, Includes Lampholder
Bell 5624-2 4 Inch Round Weatherproof Combination Cover for PAR 38 Lamps, Bronze, Includes Lampholder
- MPN: 5624-2
- UPC: 050169562420
- PPN: HBL-5624-2
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$36.82/ EA
Description

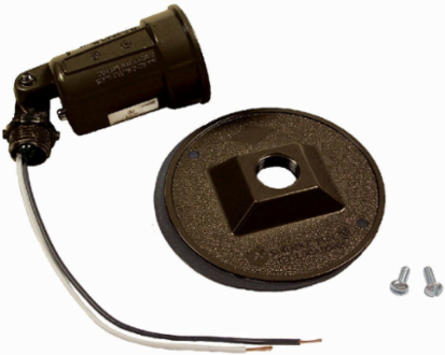

4 in. Round Weatherproof Combination Cover for 75-150W Par 38 Lamps, Includes 1 Lampholder, Gasket, and Hardware, Bronze
Features
- Rugged die cast constructions.
- State-of-the-art powder coat finish provides maximum weatherability and scratch resistance.
- Locking swivel knuckle assures positive lamp positioning and provides pin-point directional aiming.
- Includes gasket and mounting hardware.
- Multi-lingual instructions in each package.
- No Need to purchase separate components.
- Premium powder coat finish provides maximum weatherability and scratch resistance
- Rugged die cast construction
- Extra long wire leads
- Porcelain sockets
- Locking swivel knuckle
Specifications
Specifications
- Buy American Compliant
- Contact Manufacturer
- Depth
- 5.25 in
- Product Type
- Weatherproof Lighting
- Color
- Bronze
- Standard
- UL Listed;CSA Certified
- Width
- 4.22 in
- Number Of Outlets
- 1
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- WP LMPHLDR CVR 4 RNDw/(1)LMPHLD BRZ
- Harmonization Code
- 9405416000
- Lead Time
- 7 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Adjustable Detection Sensitivity
- No
- ENERGY STAR Certified
- No
- Weather Resistant
- Yes
- Light Source
- Incandescent;PAR 38
- Proposition 65 Warning Required
- No
- BOX SIZE
- 8.5x13.125x6.5 (in)
- Carton - Gross Weight per Pack
- 6.4 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 8 EA
- Item Package Type
- Shrink
- Package Height
- 4.125 in
- Package Weight
- 0.8 lb.
- Pallet - GTIN - Package
- 70050169562429
- Pallet - Pack Description
- Pallet
- Pallet - Total Units
- 840 EA
- Pallet Length
- 42.000 in
- Pallet Width
- 48.000 in
Country of OriginIN
Each - Width4.125 in
Standard Package8
Height4.22 in
TypeCover;Lighting
Fixture TypeArchitectural;Flood;Swivel
Power TypeHardwired
Class CodeD16
Freight Class Code06202000
Image Actual Or RepresentativeA
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeD170D1720
Dusk to DawnNo
Glass/Lens TypeNo Glass/Lens
ConstructionMetallic
MaterialDie Cast Aluminum
Base Unit of MeasureEA
Box TypeRound
Carton - Number of Sub Packs8
Carton - SCC-14 Next Lower Level Sub Pack50169562420
Each - Pack DescriptionEach
Lowest Level UOMEach
Package Length3.336 in
Package Width4.125 in
Pallet - Number of Sub Packs105
Pallet - SCC-14 Next Lower Level Sub Pack50050169562425
Pallet Height46.875 in
Pallet Weight717.000 lb.
Certifications
- Certified Listed
- UL Listed;CSA Certified
EU RoHS IndicatorYes
