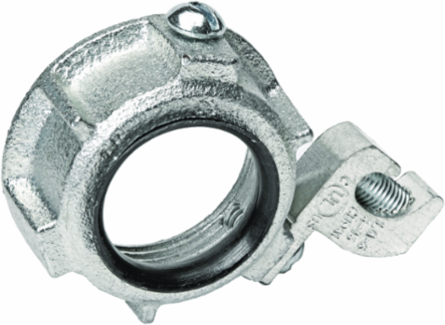

Killark BUIG10 4 Inch Insulated Grounding Bushing, Malleable Iron, 150°C Rated
- MPN: BUIG10
- UPC: 783936110967
- PPN: HBL-BUIG10
- UNSPSC: 39121331
CAD
$231.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
4" Iron Insulated Ground Bushing
Features
- Lay-in lug style provides an easy means of inserting ground wire
- Dual rated aluminum grounding lugs may be used with copper or aluminum grounding conductors
- Insuliner temperature rated at 150°C
- Malleable construction insures mechanical protection for the raceway
- Zinc electro plated for corrosion protection
- Lay-in lug style provides an easy means of inserting a ground wire. Dual-rated aluminum grounding lugs may be used with copper or aluminum grounding conductors. Insuliner temperature rated at 150ºC. Malleable iron construction ensures mechanical protection for the raceway. Zinc electro-plated for corrosion protection.
Specifications
Key Specifications
- Country of Origin
- India
- Height
- 0.625 in
- Length
- 3.3 in
- Color
- Gray
- Special Features
- Lay-in lug style provides an easy means of inserting a ground wire. Dual-rated aluminum grounding lugs may be used with copper or aluminum grounding conductors. Insuliner temperature rated at 150ºC. Malleable iron construction ensures mechanical protection for the raceway. Zinc electro-plated for corrosion protection.
- Weight
- 0.95 lb.
- Finish Type
- Natural
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 0.95
- Series
- BUIG Series
- BOX SIZE
- 0.625x3.300x3.100 (in)
- Carton - Number of Sub Packs
- 100
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936110967
- Master Pack Description
- Each
Dimensions3.3 in x 3.1 in x 0.625 in
Hub Size4"
ApplicationFor use on threaded rigid/IMC conduit to provide a means of grounding conduit through an insulated bushing.
Size3.3 in x 3.1 in x 0.625 in
TypeInsulated Grounding Bushing
Width3.1 in
ARRA CompliantContact Manufacturer
Description - Invoice4" GRND BSHG INSUL 150C 250MCM -6 AL LUG
Harmonization Code8547900030
Lead Time21 wk
Order Multiple1 EA
Sub Class CodeD30D236
MaterialZinc
Base Unit of MeasureEA
Carton - Gross Weight per Pack95.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units100 EA
NAICS Code3359323109
Certifications
- EU RoHS Indicator
- Contact Manufacturer
