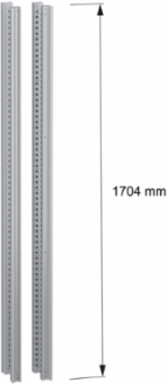

Schneider Electric NSYSFNV18 Vertical Uprights Set of 4 for Enclosure, Steel, H1800mm, 17.6 kg

MPN: NSYSFNV18
PPN: SCH-NSYSFNV18

$644.83

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This set of four vertical uprights from Schneider Electric is essential for constructing robust enclosures. Made from durable steel and featuring a height of 1800mm, these uprights ensure stability and support for your enclosure, accommodating various components securely. Weighing 17.6 kg in total, they are designed to integrate seamlessly into your installation, making them a reliable choice for maintaining an organized and safe electrical environment. With these vertical uprights, you can enhance the structural integrity of your enclosures, facilitating better organization and functionality in industrial settings.

Documentation & Downloads

Specifications

Key Specifications

Height	70.87 in
Country of Origin	Brazil, Spain, France, United States

Width	1.77 in
Depth	45 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Enclosure Nominal Dimensions	-, -
Carbon Footprint Of The End-of-life Phase [C1 To C4]	45 kg CO2 eq., 44.84976038
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	51 kg CO2 eq., 50.92736056
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2507020EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2306
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Energy Efficiency Optimized	False
Material	steel
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	Yes
Surface Finish	textured epoxy polyester
Total Lifecycle Carbon Footprint	105 kg CO2 eq.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %	97
Height Useful	1800 mm
Width Real	45 mm
Nbr. Of Units In Pkg.	1
Silicone-free	Yes
Warranty (In Months)	18
Customs Code	9403999045

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	3.754424839, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	5.315365479, 5 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-04-15
Stocking Flag	N
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Composition	4 upright
Fixing Mode	by screws M12
Mounting Support	bottom frame and top frame with roof
Product Or Component Type	vertical upright
Range	PanelSeT
Software Version	v5.9.4
Sustainable Packaging	No
Pep Code	ENVPEP2301018EN
Pep Verification Date	2023-07-31
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal	1800 mm
Width Nominal	45 mm
Accessory / Separate Part Category	mounting accessory
Package Weight(Lbs)	18.000 kg
Take-back	No
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]	-14689.8807

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Silicon Free	Yes
Circularity Profile	ENVEOLI2507020EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2301018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	104.8469113
Environmental Disclosure	ENVPEP2301018EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-07-31
Psr Version	PSR-0005-ed2-2016 03 29
