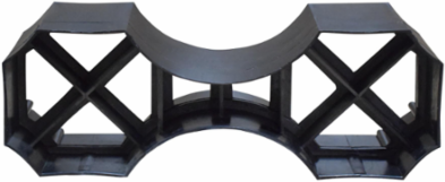

IPEX 029475 Monobloc Spacer 4 Inch x 1 Inch x 1 Inch x 2 Inch, Lightweight, Versatile Configuration
- MPN: 029475
- UPC: 622454294752
- PPN: IPX-029475
CAD
$3.01
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Monobloc spacers accommodate the specific dimensions of DB and EB duct and can be used as both a base spacer and an intermediate spacer for versatility. Monobloc spacers support DB/EB duct in sizes 2” – 5” and are available in a range of configurations that provide 1” to 3” separation between ducts. To minimize jobsite assembly these spacers are available as single, double, triple or quad run units (way). Any number of parallel conduit runs can be accommodated by combining Monobloc spacers (i.e. a 2-way and a 3-way create a 5-way).
Features
- Resilient at all temperatures
- Lightweight and easy to use
- Available in 29 configurations, many with molded-in rebar holder
- Economical choice for virtually any duct bank installation
Documentation & Downloads
Specifications
Key Specifications
- Weight
- 0.087 kg
- Diameter2 Imperial
- 1"
- Diameter4 Imperial
- 2"
- NAFTA
- Yes
Diameter14"
Diameter3 Imperial1"
Country of OriginCanada
Base Quantity Metric1.000
