Killark WH-0 4 Inch Weatherproof Conduit Hub, Zinc Construction, Vibration-Proof Termination
Killark WH-0 4 Inch Weatherproof Conduit Hub, Zinc Construction, Vibration-Proof Termination
- MPN: WH-0
- UPC: 783936841892
- PPN: HBL-WH-0
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$374.82/ EA
Description

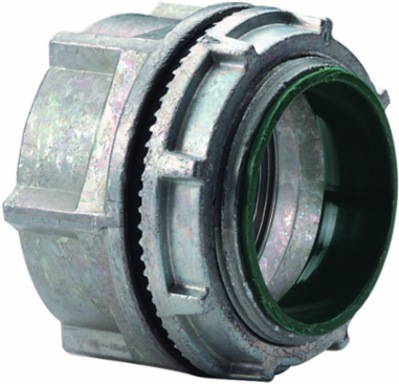

4" Zinc Weather Proof Conduit Hub w/ Ground
Features
- Oversized locknut provides for a strong vibration-proof termination
- Captive sealing ring
- Serrations on hub body and locknut provide effective positive ground path
- Insulated throat protects conductors
- Oversized locknut provides for a strong vibration-proof termination. Captive sealing ring. Serrations on hub body and locknut provide effective positive ground path. Rugged cast zinc construction. Insulated throat protects conductors. Suitable for use wit
Specifications
Specifications
- Finish
- Natural
- ARRA Compliant
- Contact Manufacturer
- Country of Origin
- IN
- Each - Width
- 5.450 in
- Height
- 2.59 in
- Length
- 5.45 in
- Application
- Conduit hubs provide a liquid tight, oil tight and dust tight termination of electrical conduit through the walls of sheet metal enclosures. The hubs fit into standard knock-out dimensions.
- Type
- Weatherproof Conduit Hub
- Description - Invoice
- WEATHERPROOF CONDUIT HUB 4"
- Harmonization Code
- 7907009101
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D236
- Material
- Zinc
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 10.720 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 4
Special FeaturesOversized locknut provides for a strong vibration-proof termination. Captive sealing ring. Serrations on hub body and locknut provide effective positive ground path. Rugged cast zinc construction. Insulated throat protects conductors. Suitable for use wit
ColorGray
Dimensions5.45 in x 5.45 in x 2.59 in
Hazardous Rating(s)Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
Hub Size4"
Width5.45 in
Finish TypeNatural
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging2.68
SeriesWH Series
BOX SIZE6.000x8.500x8.750 (in)
Carton - Number of Sub Packs4
Carton - SCC-14 Next Lower Level Sub Pack00783936841892
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
