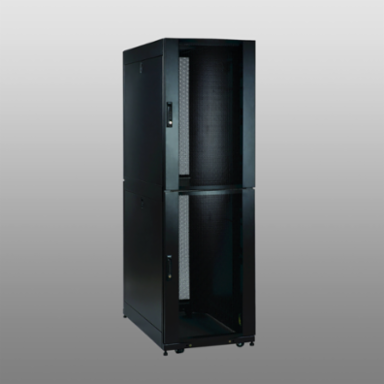

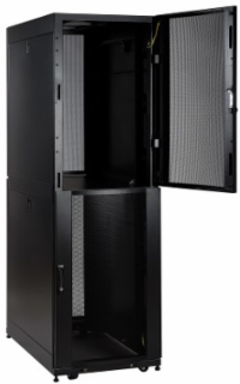

Tripp Lite SR42UBCL 42U Co-Location Rack Enclosure Cabinet, Standard Depth, 3000 lbs Capacity
Tripp Lite SR42UBCL 42U Co-Location Rack Enclosure Cabinet, Standard Depth, 3000 lbs Capacity
- MPN: SR42UBCL
- UPC: 037332147585
- PPN: TRP-SR42UBCL
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Features

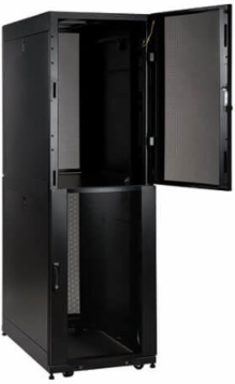

- Two compartment co-location rack with doors and side panels

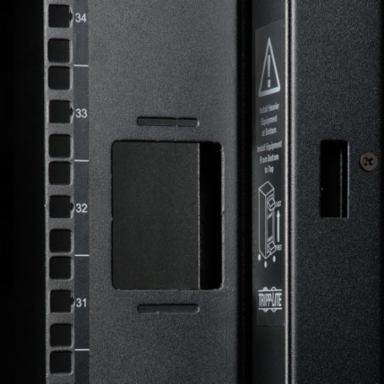

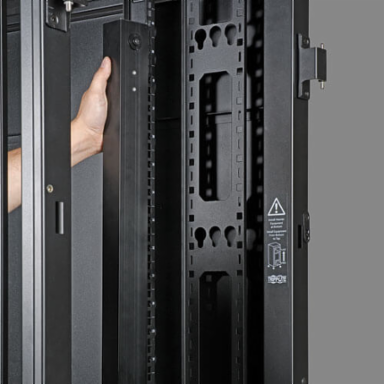

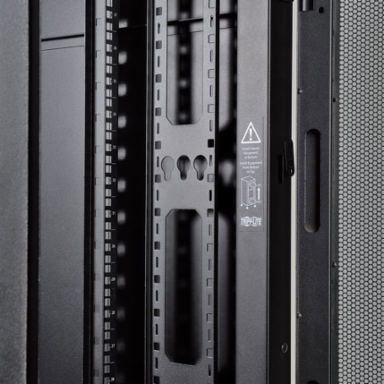

- 4 interior vertical posts with unthreaded square hole openings
- Standard 24" width for optimizing floor space
- Features a secure cable channel for each individual compartment
- Ships fully assembled
- Massive front to rear ventilation capacity

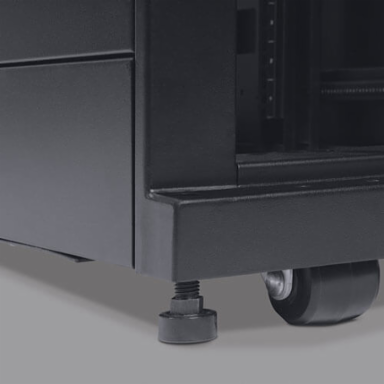

- 3000 lb stationary / 2250 lb rolling load capacity

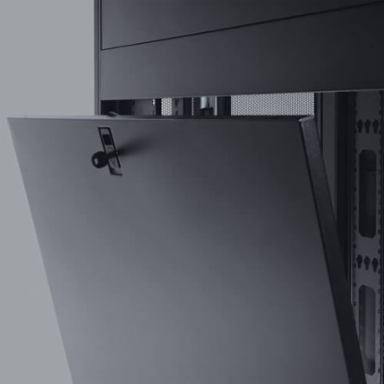

- Locking, removable, reversible front and rear doors
- Combination lock, with key override standard on all doors
- Locking, removable side panels keyed alike with doors
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
- 5-year limited warranty
Specifications
- Load Capacity Stationary
- 3000 lbs
- Rack Height
- 42U
- Maximum Device Depth
- 37 in.
- Unit Dimensions (HWD)
- 78.5 x 23.63 x 43 in.
- Color
- Black
- Door Type
- Locking, removable, reversible front and rear
- Vertical Posts
- 4 interior with unthreaded square hole openings
- Ventilation
- 65+% open perforated doors
- Grounding

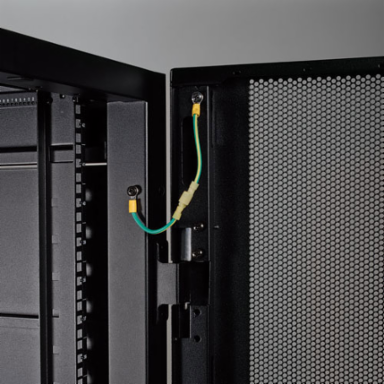

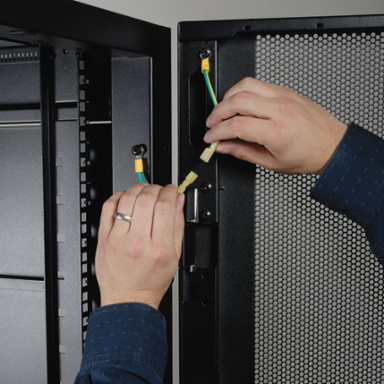

- Front and back door frames with quick-release ground wires
Load Capacity Rolling2250 lbs
Rack DepthStandard
Minimum Device Depth4 in.
Unit Weight305 lbs
MaterialPowder coat finish

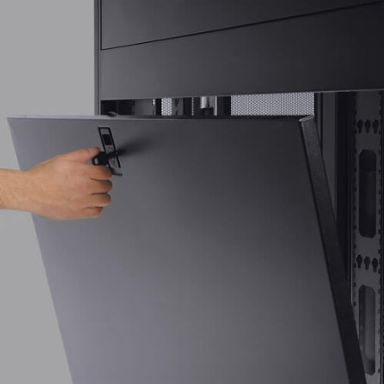

Side PanelsLocking, removable, keyed alike with doors, half size

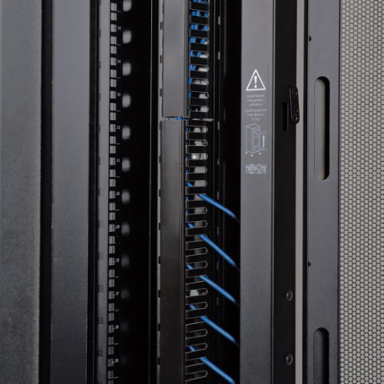

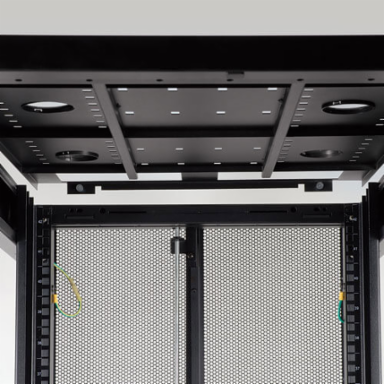

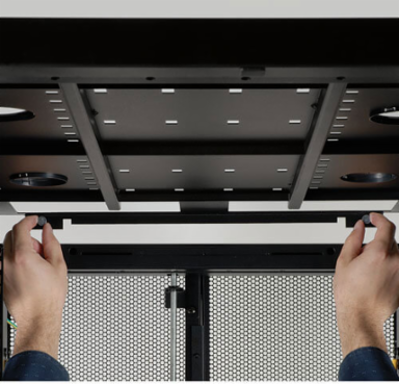

Cable ManagementBuilt-in, secure cable channel for each compartment
CertificationsUL60950, RoHS, CE, IP20 Protection Rating, EIA/ECA-310-D
Warranty5-year limited
