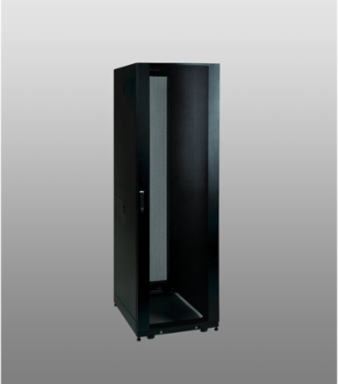

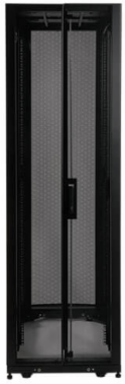

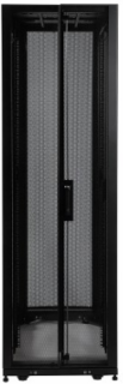

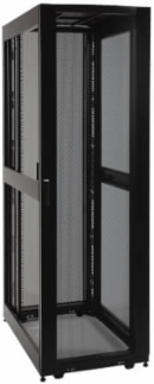

Tripp Lite SR42UBSD 42U SmartRack Shallow-Depth Rack Enclosure Cabinet with doors & side panels

MPN: SR42UBSD
UPC: 037332163936
PPN: TRP-SR42UBSD

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3030.00/ EA

Qty:

Loading add to cart quantity...

Description

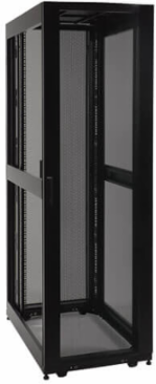

42U SmartRack Shallow-Depth Rack Enclosure Cabinet with doors & side panels

Features

Ideal for shallow depth A/V equipment or any venue with limited floorspace

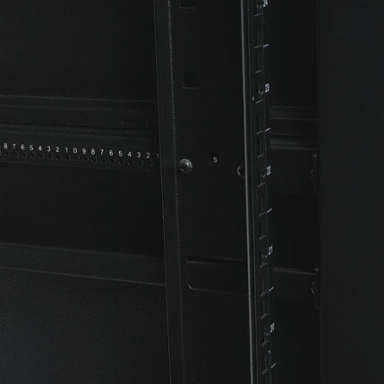

32" (825mm) depth (with mounting depth increments of 4 to 27") and standard 24" (600mm) width
Ships fully assembled
3000 lb stationary / 2250 lb rolling load capacity

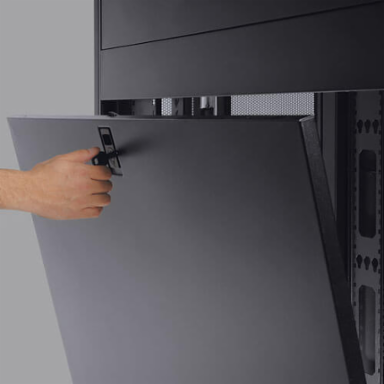

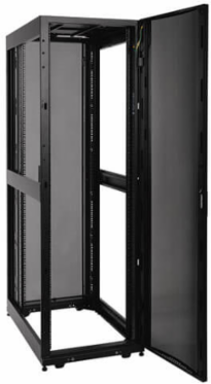

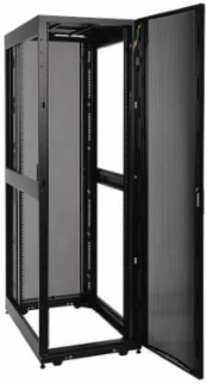

Locking, removable, reversible front and rear doors; Locking, removable side panels keyed alike with doors
Preinstalled casters and leveling feet; Rolls through standard 7 foot doorway
Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
5-year limited warranty

Specifications

Certifications

Certifications: UL60950; RoHS; CE; IP20 Protection Rating

ApprovalsEIA/ECA-310-E

Physical

Color: Black

Maximum Device Depth (in.): 27

Rack Height: 42U

Shipping Weight (lbs.): 265.00

Unit Weight (lbs.): 261

Weight Capacity - Stationary (lbs.): 3000

Factory Preset Rack Depth (in.)19.25

Minimum Device Depth (in.)4

Shipping Dimensions (hwd / in.)78.00 x 25.00 x 32.50

Unit Dimensions (hwd / in.)78.5 x 23.63 x 32.48

Weight Capacity - Rolling (lbs.)2250

Rack DepthShallow

Overview

UPC Code: 037332163936

Rack TypeEnclosure

Special Features

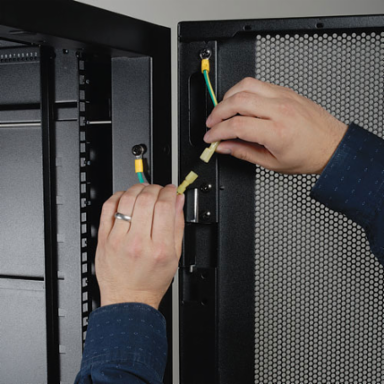

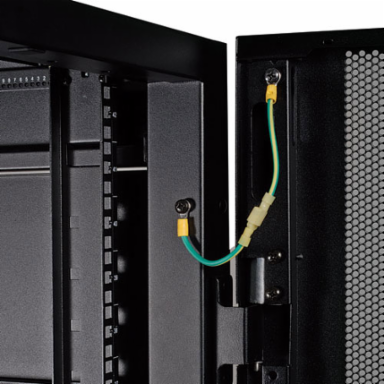

Grounding Lug: Front and back door frames

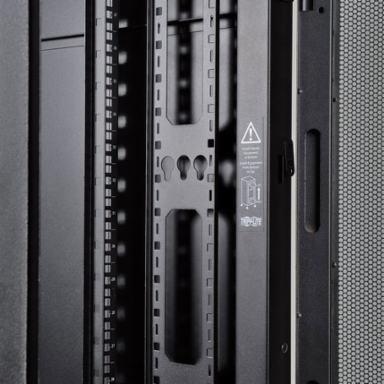

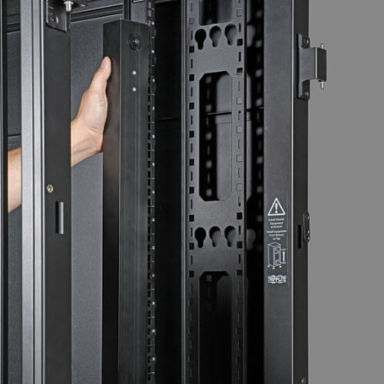

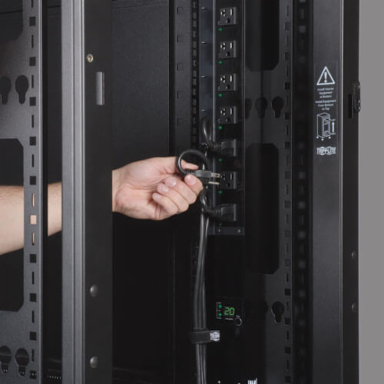

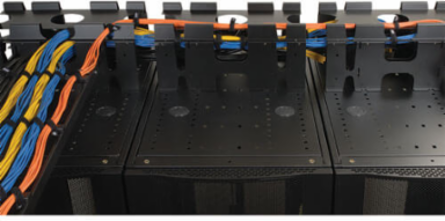

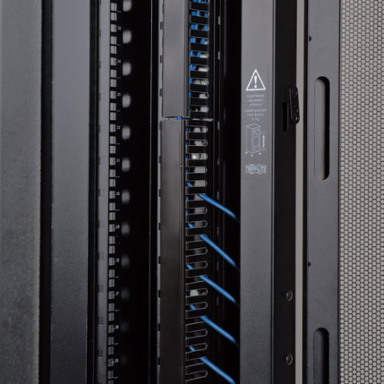

Built-in Cable ManagementYes

Warranty

Product Warranty Period (Worldwide): 5-year limited warranty
