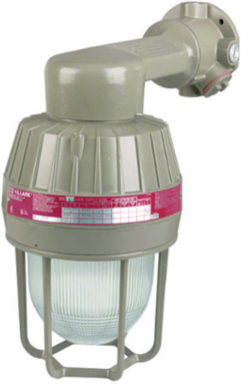

Killark EQF4230B2G 42W Compact Fluorescent Wall Mount Fixture, 120-277VAC, 3/4 Inch, Corrosion Resistant
- MPN: EQF4230B2G
- UPC: 783936143491
- PPN: HBL-EQF4230B2G
CAD
$3555.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
42W Fluorescent 120-277V 3/4" Wall Mount with Guard
Features
- Four light sources—Incandescent, compact fluorescent, high pressure sodium and metal halide
- Mounting choice—Pendant, ceiling, 25? stanchion or 90? wall mount, all with “wireless” design that allows fast, easy fixture installation
- Factory sealed—No external seal needed. Simply wire mounting cap and thread on fixture to install
- Compact size—Medium base incandescent and HID lamps, plus PL fluorescent lamps allow smaller fixture design
- Corrosion resistant—Copper-free aluminum die-cast construction. Baked powder epoxy finish, electrostatically applied. Exposed hardware is 316 grade stainless steel.
- The EQF Series fixture an explosion proof fixture that uses Compact Fluorescent lamps. The housing is made of a corrosion resistant copper free aluminum that is coated with a powder epoxy paint for extra corrosion resistance. The EEQ Series is factory sealed so no external seal is required in Explosive environments.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Hub Size | 3/4" |
| Voltage Rating | 120-277 VAC |
| Frequency Rating | 50/60 Hz |
| Mounting Type | Wall Bracket |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | FLUOR 42W 120-277V 3/4" WALLGD |
| Harmonization Code | 9405196020 |
| MSDS Flag | No |
| Light Source | Compact Fluorescent |
| Series | EQF Series |
| BOX SIZE | (in) |
| NAICS Code | 3351222100 |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
|---|---|
| Optic Type | Glass Globe - Clear |
| Finish Type | Powder Epoxy Paint |
| Lamp Type | Quad Pin |
| Wattage | 42 W |
| Class Code | D20 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | A |
| Sub Class Code | D20D201 |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936143491 |
