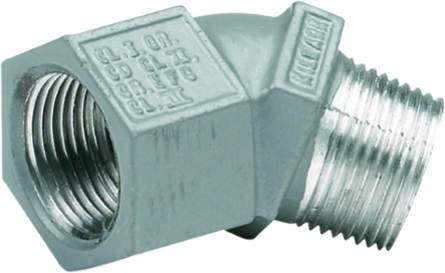

Killark MF-45-1M 45 Degree 1/2 Inch Iron Elbow with Threaded Connections and Smooth Bushings
Killark MF-45-1M 45 Degree 1/2 Inch Iron Elbow with Threaded Connections and Smooth Bushings
- MPN: MF-45-1M
- UPC: 783936170329
- PPN: HBL-MF-45-1M
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$58.60/ EA
Description
45° 1/2" Iron Elbow, Male/Female
Features
- Threaded for rigid conduit or IMC
- Smooth integral bushings to prevent damage to wires
- Threaded for rigid conduit or IMC. Smooth integral bushings to prevent damage to wires.
Specifications
Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Glossy gray
- Height
- 2 in
- Length
- 3 in
- Type
- 45 Degree Elbow
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- MF Series
- BOX SIZE
- 4.000x7.750x5.750 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936170329
- Master Pack Description
- Each
Dimensions3 in x 2 in x 2 in
ApplicationTo change direction in rigid or IMC conduit systems.
FinishPowder Epoxy Paint
Hub Size1/2"
Special FeaturesThreaded for rigid conduit or IMC. Smooth integral bushings to prevent damage to wires.
Width2 in
ARRA CompliantContact Manufacturer
Description - InvoiceELBOW 1/2" 45 MF IRON
Harmonization Code7307929000
Lead Time35 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging0.31
MaterialIron
Base Unit of MeasureEA
Carton - Gross Weight per Pack7.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25
Certifications
- EU RoHS Indicator
- Contact Manufacturer
