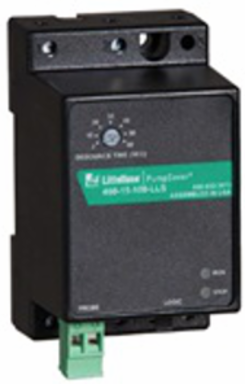

Littelfuse 460-15-100-LLS 460-15-100-LLS - 460-15-100-LLS Series
- MPN: 460-15-100-LLS
- UPC: 079458990539
- PPN: LTF-460-15-100-LLS
CAD
$204.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Relay logic can be inverted so the relay’s output contacts change state when the probe is no longer submersed. This makes the unit versatile for use in pump-up and pump-down applications.
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage (V)
- 110 to 120VAC nominal
- Input AC Line Frequency (Hz)
- 50/60Hz (50Hz will increase all delay timers by 20%.)
- Output Load Rating (VA)
- Pilot Duty: 360VA @ 240VAC B300; General Purpose: 8A @ 240VAC
- Sense Voltage
- 5vdc continuous (probe)
- Protection Class
- IP20 NEMA 1 (finger safe)
- Mounting Method
- 35mm DIN rail or Surface Mount (#6 or #8 screws)
- Storage Temperature (F/C)
- -40° to 80°C (-40° to 176°F)
- Dimensions
- 3.50 in H x 2.08 in W x 2.35 in D (88.9 x 52.9 x 59.7 mm)
Maximum Input Power2W
Output FormDPST - Two Form A
Debounce Time Delay (s)2 - 60s
Sensitivity (Ohms)100kΩ
Termination TypeTorque: 6in-lbs; Wire: Stranded or solid 12-20AWG
Operating Temperature-20° to 70°C (-4° to 158°F)
Humidity10-95% non condensing per IEC 68-2-3
Weight (lbs/g)1.0 lb. (16.0 oz. 453.6 g)
