Tripp Lite SR48UBWD 48U Wide Rack Enclosure Cabinet, 3000 lb Capacity, 30 Inch Width, 42 Inch Depth
- MPN: SR48UBWD
- UPC: 037332156815
- PPN: TRP-SR48UBWD
CAD
$4984.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

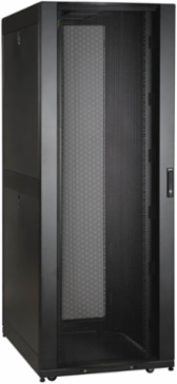

48U Wide Rack Enclosure Cabinet, 3000 lb Capacity, 30 Inch Width, 42 Inch Depth
Features
- 48U SmartRack enclosure with doors and side panels

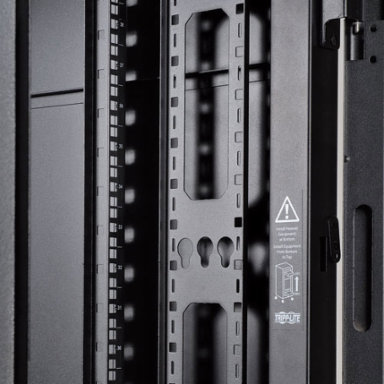

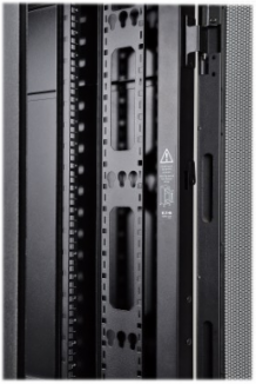

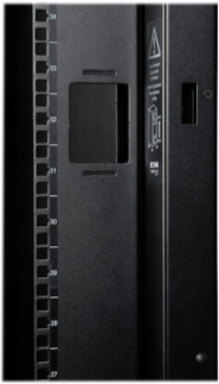

- 4 interior vertical posts with unthreaded square hole openings
- 30" (750mm) width for optimizing airflow through cabinet
- Standard 42" (1050) depth
- Ships fully assembled
- Massive front to rear ventilation capacity
- 3000 lb stationary / 2250 lb rolling load capacity

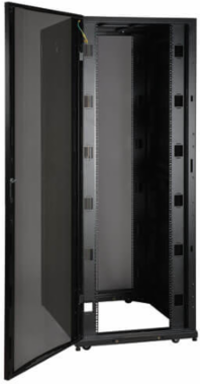

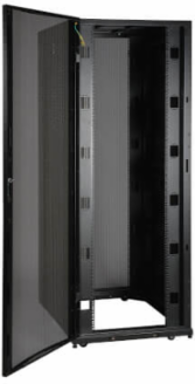

- Locking, removable, reversible front and rear doors
- Locking, removable side panels keyed alike with doors
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
- Rack Height
- 48U
- Minimum Device Depth
- 4 in.
- Weight Capacity - Stationary
- 3000 lbs.
- Shipping Dimensions (H x W x D)
- 95 x 26 x 45 in.
- Mounting Hole Type
- Unthreaded square holes

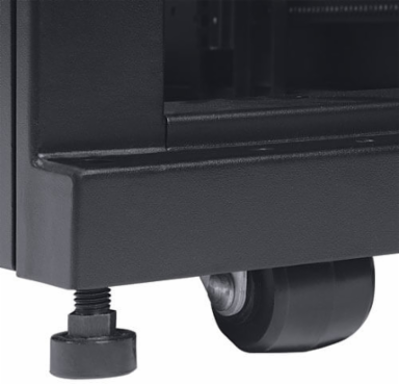

- Casters
- Preinstalled, removable
- Material
- Powder coat finish
- Rack Depth
- Standard
- Compliance
- PCI DSS, UL60950, RoHS, CE, IP20
- Rack Type
- Enclosure
- Accessory Mounting

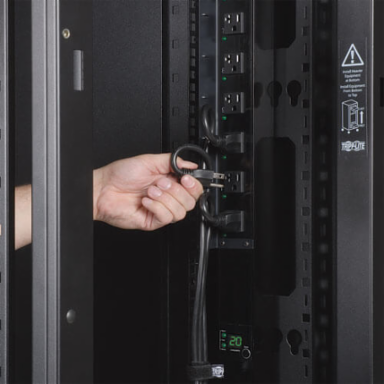

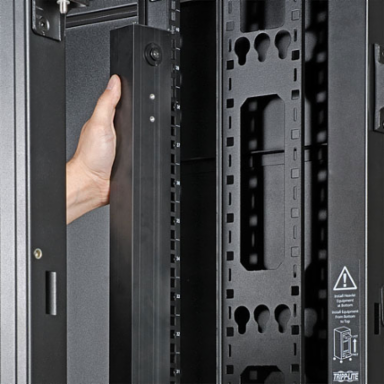

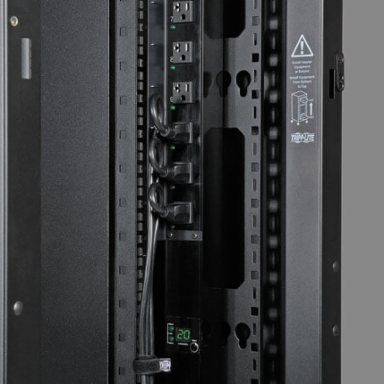

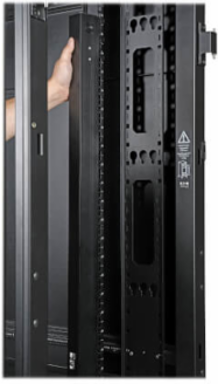

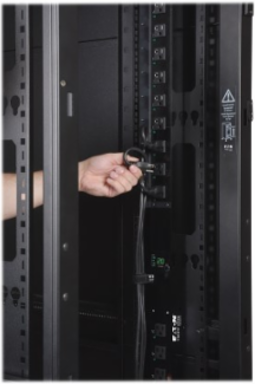

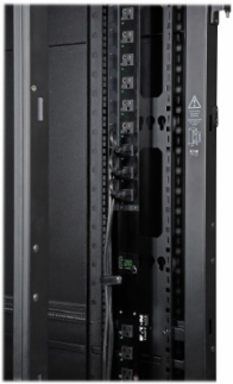

- Toolless button-mount 0U for up to four PDUs or cable managers

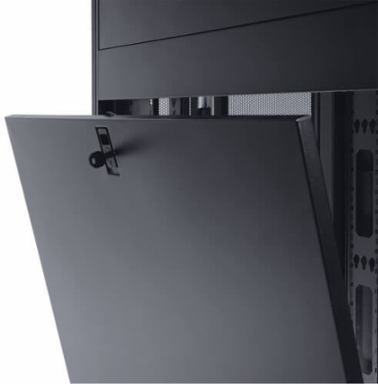

- Side Panels
- Locking, removable, half-size keyed alike sides
Maximum Device Depth37 in.
Weight Capacity - Rolling2250 lbs.
Unit Dimensions (H x W x D)89 x 29.53 x 43 in.
Unit Weight343 lbs.
Mounting Hole Adjustment Range4 to 37 in. in 0.25 in. increments

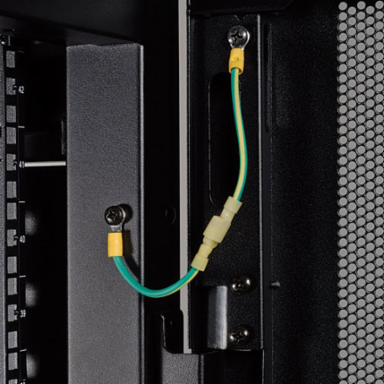

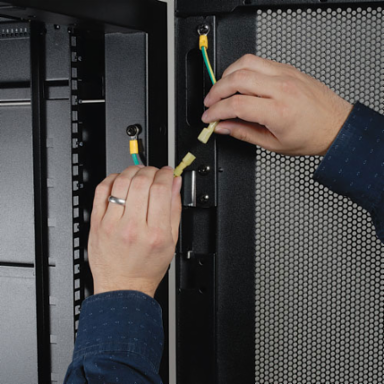

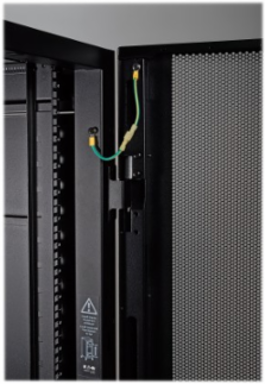

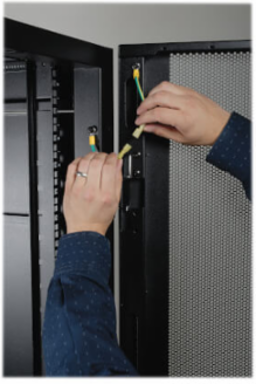

Grounding LugFront and rear door frames with quick-release ground wires
ColorBlack
Extra WideYes
ApprovalsEIA/ECA-310-A, IEC 60297-3-100
Baying TabsIntegrated for combining enclosures in rows
DoorsLocking, removable, reversible front and rear doors
