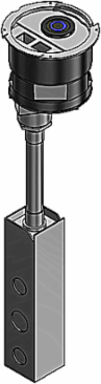

Steel City FPT4-1TL31-2C Fire Rated Poke Through Box, 19-3/4 Inch Length, 1/2 Inch Hub Size, Galvanized Steel
- MPN: FPT4-1TL31-2C
- UPC: 785991042856
- PPN: T-B-FPT4-1TL31-2C
CAD
$956.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Poke Through Base Unit, Length 19-3/4 Inches, Diameter 7-1/2 Inches, Hub Size 1/2 Inch, Galvanized Steel, 30A/125V Locking Receptacle, 2 Communications Receptacles
Features
- Four modular configurations for power receptacles and communications jacks mounted flush with the floor
- Full access to communications compartment through the cover without exposing power compartments even after it is installed in the floor
- Threaded conduit hubs enable all communications cabling to be enclosed in a single conduit
- Accommodates fiber optic and audio/video connectors
- Pre-wired power receptacles
Specifications
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 7.17 lbs. Each |
| Outer Dimensions (inches) | 21.38x8.13x5.5 |
|---|
European Specifications (ETIM)
| ETIM | EC000024 Installation box for underfloor-installation |
|---|---|
| Suitable for wet cleaning | N |
| Material | Other |
| Colour | Other |
| Outer diameter | 190.5mm |
| Cover model | Round |
|---|---|
| Suitable for hollow floor | Y |
| With opening carpeting | N |
| Length external dimension | 501.65mm |
North American Specifications (UNSPSC)
| UNSPSC | 39121328 Fire rated poke through box |
|---|---|
| Brand Name | Steel City |
| Special Features | Four modular configurations for power receptacles and communications jacks mounted flush with the floor |
| Standard | UL E2969 |
| IGCC | 4482 Fire rated poke through box |
|---|---|
| Type | Poke Through Systems |
| Application | For above-grade, fire rated concrete floors. |
| Material | Die Cast Zinc/Galvanized Steel |
