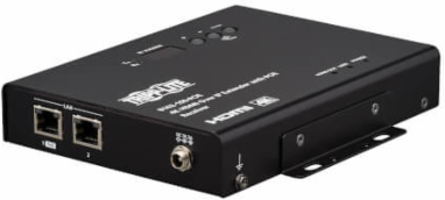

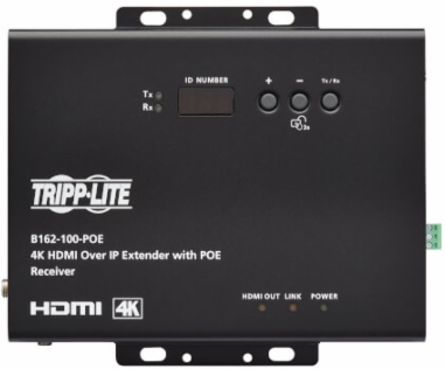

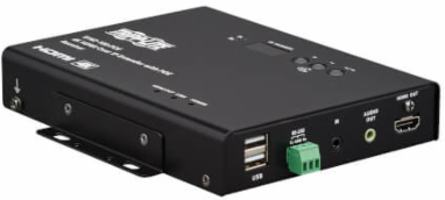

Tripp Lite B162100POE HDMI over IP Decoder, 4K 30 Hz, PoE, 328 ft. (100 m)
- MPN: B162100POE
- UPC: 037332263827
- PPN: TRP-B162-100-POE
CAD
$1546.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HDMI over IP Decoder - 4K, 4:4:4, PoE, 328 ft. (100 m), TAA

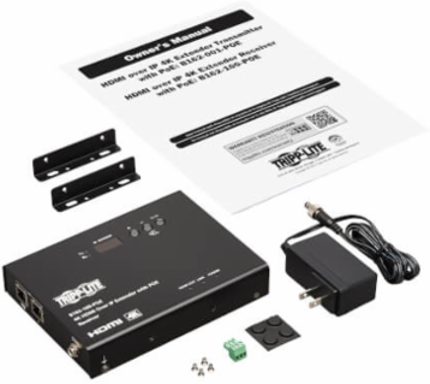

Features
- HDMI over IP Extender Receiver

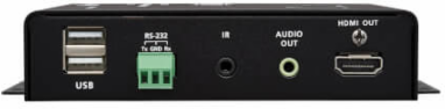

- RS-232 terminal block
- External power supply with NEMA 1-15P plug (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V 3A)
- (4) Foot pads
- Mounting brackets
Documentation & Downloads
Specifications
Dimensions

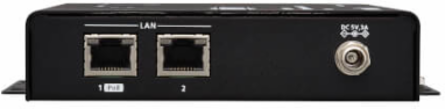

| Side A Connectors | (2) RJ45 (FEMALE) |
|---|
| Unit Dimensions | 6.700 x 5.010 x 1.140 in |
|---|
Material
| Connector Plating | Nickel |
|---|---|
| Material of Construction | Metal |
| Color | Black |
|---|
Compliance
| Product Warranty Period | 1-year limited warranty |
|---|
Reference
| Recommended Category Cable | Cat5e / Cat6 |
|---|
| LED Indicators | Green (Power); Orange (Connection) |
|---|
Performance
| Product Type | Receiver |
|---|---|
| Max. Distance | 100 m |
| HDR Support | Yes |
| Technology | Cat5/5e; Cat6; HDMI |
| Power Consumption | DC: 3.49W; PoE: 4.36W |
| AC Power Adapter Output | 5V / 3A |
| Port Selection | Pushbutton |
| Relative Humidity | 0-80% non-condensing |
| Max Supported Video Resolution | 3840 x 2160 (4K) @ 30Hz |
|---|---|
| Max Supported Color Depth | 36-bit Deep Color |
| HDCP Specification | 1.4 |
| Number of Ports | 2 |
| AC Power Adapter Input | 100-240V / 50/60Hz / 0.5A |
| Power Source Type | AC Adapter |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
