nVent Caddy 4QTIBSF nVent CADDY Rod Lock Spring Steel Rod Hanger with Shot-Fire Bracket, 1/4" Rod
- MPN: 4QTIBSF
- UPC: 784805383338
- PPN: CAD-4QTIBSF
- UNSPSC: 39121701
CAD
$7.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

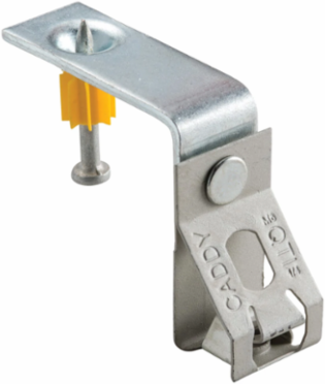

nVent CADDY Rod Lock Spring Steel Rod Hanger with Shot-Fire Bracket, 1/4" Rod
Features
- Suspends threaded rod without the need for additional hardware
- Complete with shot-fire bracket and pre-assembled drive pin from DEWALT®

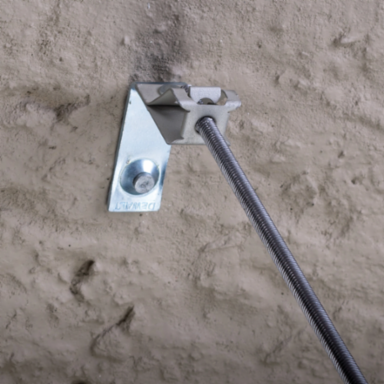

- Quickly and easily attaches to concrete, steel or composite metal decking

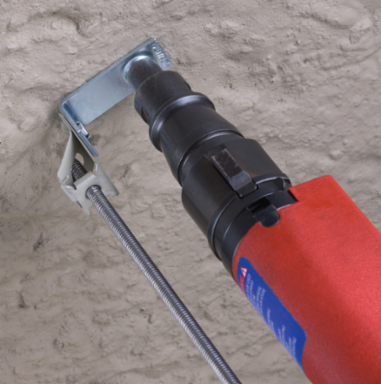

- Integrated pin installs easily using powder-actuated or single-shot gas-actuated tools
- ICC-ES ESR-2024 evaluation report available for drive pin from DEWALT®
- Easy "push-to-install" design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position

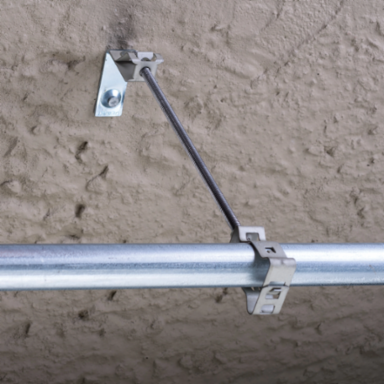

- Prefabricated assemblies easily lift and lock into place, helping to save time and money
- Works with slightly damaged threads and minor burrs on threaded rod ends
- Design includes a release mechanism that works with pliers
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Height (H)
- 63.6
- Static Load (F)
- 75
- Sub Brand
- CADDY
- Finish
- nVent CADDY Armour
Rod Size (RS)6
Width (W)67.4
Static Load300
MaterialSpring Steel
