Tripp Lite N48S4M8L410 Preloaded Fiber Panel, 1U, 4x MTP/MPO-APC to LC Duplex Trunk Cables, 8F OS2 Singlemode, 10 m
- MPN: N48S4M8L410
- UPC: 037332262721
- PPN: TRP-N48S-4M8L4-10
CAD
$2164.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Preloaded Fiber Panel, 1U - 4x (12F MTP/MPO-APC to 4x LC Duplex F/M) 8F Trunk Cables, OS2 Singlemode, 10 m (32.8 ft.)
Features

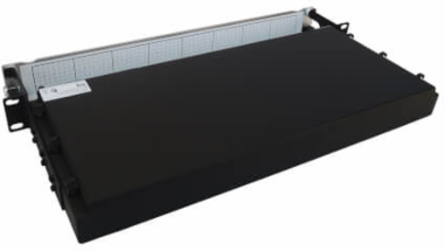

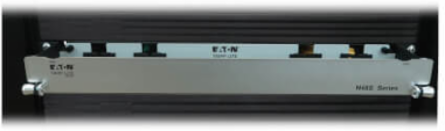

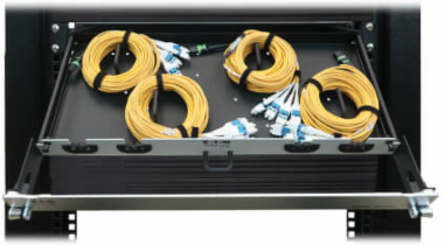

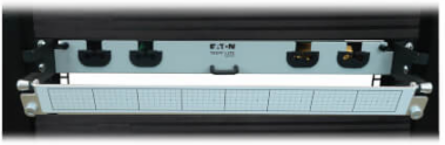

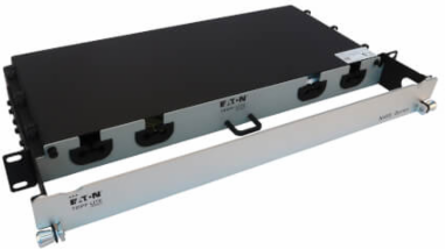

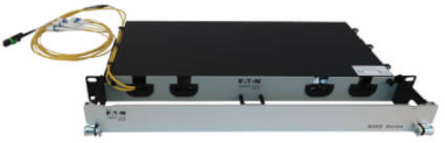

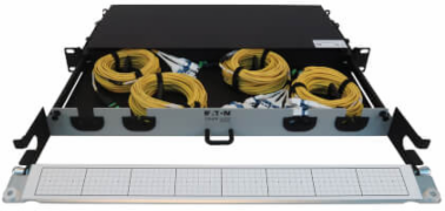

- Preloaded Fiber Panel

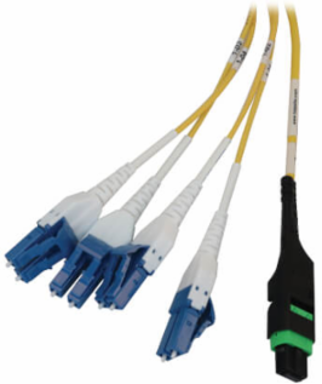

- (4) MTP/MPO-APC to LC Duplex trunk cables, 10 m (32.8 ft.)
- Installation guide
Documentation & Downloads
Specifications
Dimensions
- Panel Dimensions
- 17.32 x 1.73 x 10.20 in
- Fiber Cable Length
- 10 m (32.8 ft)
- Side A - Connector 1
- 12F MPO (Female)
- Optical Port
- LC; MPO/MTP
- Offset Ports
- No
- Cable Outer Diameter
- 2.9 mm
- Core Diameter
- 9
- Minimum Bend Radius
- 20 mm (Dynamic); 10 mm (Static)
Panel Cable Number4
Number of Fibers24
Side B - Connector 1(4) LC Duplex (Male)
Endface PolishAPC; UPC
Primary Form FactorRackmount
Clad Diameter125
Primary Coating Diameter245
Performance
- Network Compatibility
- 40 Gbps; 100 Gbps; 400 Gbps
- Attenuation @ 1310NM
- 0.36 dB/km
- Operating Temperature Range
- -4 to 140°F (-20 to 60°C)
- Operating Humidity Range
- 5% to 85% RH, Non-Condensing
Wavelength1310nm; 1550nm
Attenuation @ 1550NM0.22 dB/km
Storage Temperature Range-4 to 140°F (-20 to 60°C)
Storage Humidity Range5% to 85% RH, Non-Condensing
Material
- Product Type
- Preloaded
- Panel Style
- Preloaded Fiber Panel
- Connector Color
- Black; Blue; Green; White
- Cable Jacket Rating
- OFNP
TechnologySinglemode
Cable Jacket ColorYellow
Cable Jacket MaterialPVC
All-in-One KitYes
Compliance
- Product Warranty Period
- Lifetime limited warranty
