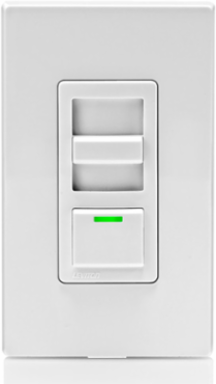

Leviton IPF05-1LZ IllumaTech Fan Speed Control Switch 5 Amp Single Pole with LED Locator Light
- MPN: IPF05-1LZ
- UPC: 078477282403
- PPN: LEV-IPF05-1LZ
CAD
$134.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
5 Amp, 120 Volt AC 60Hz, Single-Pole, IllumaTech Fully Variable Preset Electro-Mechanical, Slide Fan Speed Control, LED Locator Light - White face assembled on device. Ivory and Light Almond color change kits included
Features
- IllumaTech Preset Dimmers and Fan Speed Controls feature a low-profile fluid slide bar movement for fine adjustment of light levels or fan speeds that’s accompanied by an easy-to-use ON/OFF preset switch. The switch provides quick ON/OFF control without disturbing your favorite pre-selected settings. Most feature a built-in LED locator light, as well. Models are available for incandescent, magnetic or electronic low-voltage, and Mark 10 Powerline dimming-ballast fluorescent lighting, and quiet and standard fan speed control. All Preset models are designed for both single-pole (one-location) and 3-way (multi-location) applications.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120 VAC
- Load Type
- Fan
- Switch Type
- Single-Pole & 3-Way
- Preset
- Yes
- Load Rating
- 5 Amp
- Type
- Electro-Mechanical
- Available Color Kits
- Ivory, White, Light Almond, Gray, Black, Brown, Red
- Standards and Certifications
- UL/CSA
- Brand
- IllumaTech
- Warranty
- 2-Year Limited
Amperage5 Amp
Frequency60 Hz
Control TypeFully Variable Preset Electro-Mechanical Slide
ProtectionRadio/TV Filter
LED Locator LightYes
ColorWhite, Ivory, Light Almond
Color Change KitIPKIT Series
RoHS CompliantFalse
Country of OriginChina
