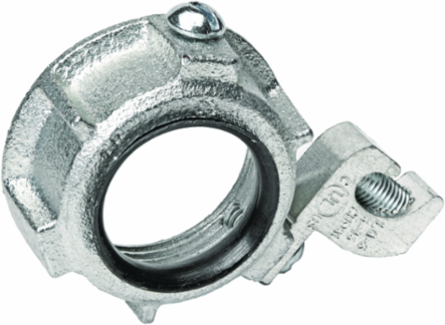

Killark BUIG11 5 Inch Insulated Grounding Bushing, Malleable Iron, 150°C Rating
- MPN: BUIG11
- UPC: 783936110981
- PPN: HBL-BUIG11
- UNSPSC: 39121331
CAD
$547.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
5" Iron Insulated Ground Bushing
Features
- Lay-in lug style provides an easy means of inserting ground wire
- Dual rated aluminum grounding lugs may be used with copper or aluminum grounding conductors
- Insuliner temperature rated at 150°C
- Malleable construction insures mechanical protection for the raceway
- Zinc electro plated for corrosion protection
- Lay-in lug style provides an easy means of inserting a ground wire. Dual-rated aluminum grounding lugs may be used with copper or aluminum grounding conductors. Insuliner temperature rated at 150ºC. Malleable iron construction ensures mechanical protection for the raceway. Zinc electro-plated for corrosion protection.
Specifications
Key Specifications
- Country of Origin
- India
- Height
- 0.625 in
- Length
- 6.1 in
- Color
- Gray
- Special Features
- Lay-in lug style provides an easy means of inserting a ground wire. Dual-rated aluminum grounding lugs may be used with copper or aluminum grounding conductors. Insuliner temperature rated at 150ºC. Malleable iron construction ensures mechanical protection for the raceway. Zinc electro-plated for corrosion protection.
- Width
- 5.9 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 5" GRND BSHG INSUL 150C 250MCM -6 AL LUG
- Harmonization Code
- 8547900030
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D236
- Material
- Zinc
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 110.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 100 EA
- NAICS Code
- 3359323109
Dimensions6.1 in x 5.9 in x 0.625 in
Hub Size5"
ApplicationFor use on threaded rigid/IMC conduit to provide a means of grounding conduit through an insulated bushing.
Size6.1 in x 5.9 in x 0.625 in
TypeInsulated Grounding Bushing
Finish TypeNatural
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging1.1
SeriesBUIG Series
BOX SIZE6.000x9.000x8.000 (in)
Carton - Number of Sub Packs100
Carton - SCC-14 Next Lower Level Sub Pack00783936110981
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
