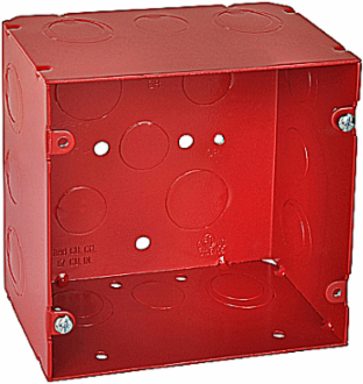

Steel City 82181-1234-RD Fire Signal Box, 5 Inch x 5 Inch x 2-7/8 Inch, Red Steel, 67 Cubic Inches
- MPN: 82181-1234-RD
- UPC: 785991072112
- PPN: T-B-82181-1234-RD
CAD
$37.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fire Signal Box, 67 Cubic Inches, 5 Inches Square x 2-7/8 Inches Deep, 1/2 Inch and 3/4 Inch Knockouts, Red, Pre-Galvanized Steel
Features
- Integrated cable management posts prevent kinked and over-bent cables to help ensure proper data transmission
- BICSI-recommended slack cable loop eliminates the need for a second technician in a remote location to assist in pulling the cable out of the box for connector termination
- Save up to 50% in labor
- Eliminate the need to remove ceiling tiles to access the slack cable loop, preventing damage and debris
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121308 Outlet box |
|---|---|
| Brand Name | Steel City |
| Special Features | Increase capacity, save labor and reduce troubleshooting |
| Material | Steel |
| Cubic Capacity | 64 Cubic Inches |
| Color | Red |
| IGCC | 4438 Steel Outlet Boxes |
|---|---|
| Type | Square Boxes |
| Number Of Outlet | 1 |
| Size | 5 Inches Height x 5 Inches Width x 2-7/8 inches depth |
| Knockouts | 17 |
European Specifications (ETIM)
| ETIM | EC002600 Box/housing for surface mounting on the wall/ceiling |
|---|---|
| Mounting method | Wall-/ceiling mounting |
| Width | 127mm |
| Material | Steel |
| Shape | Square |
|---|---|
| Length | 127mm |
| Depth | 73.025mm |
| Weatherproof | N |
Packaging
| Outer Quantity | 20 |
|---|---|
| Weight Uom | 144.5 lbs. per 100 |
| Outer Dimensions (inches) | 15.5x10.6x11.8 |
|---|
