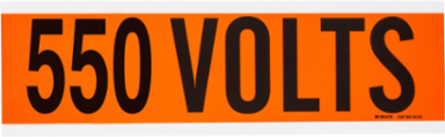

Brady 44116 550 VOLTS Label, 2.25 Inch H x 9 Inch W x 0.0073 Inch D, Self-Adhesive Vinyl Cloth
Brady 44116 550 VOLTS Label, 2.25 Inch H x 9 Inch W x 0.0073 Inch D, Self-Adhesive Vinyl Cloth
- MPN: 44116
- UPC: 754473441166
- PPN: BRD-44116
- UNSPSC: 55121606
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$6.70/ EA
Description
Orange ASME-compliant conduit and voltage labels alert employees to potentially dangerous machinery or energized equipment.
Features
- Orange markers meet ASME (ANSI) Standard ZG3.22
- The adhesive and cloth backing offers excellent holding power, yet allow for clean removal and repositioning
- Sticks to any clean, dry surface
- Specially formulated topcoat for excellent print quality
Specifications
Specifications
- Brand Name
- Brady®
- Color
- Black on Orange
- Enables Industry Compliance
- ANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145
- Image or Text
- Text Only
- Mounting Type
- Self-Adhesive
- Primary Noun, Basic Function
- Label
- PSPA Photoluminescence Class
- Not Illuminated
- Shape
- Rectangle
- Trade Name
- CleanLift
- Brady Material Number
- B-498
- Label Properties
- Repositionable Labels
- Material
- Vinyl Cloth
- SAP B-Number
- B-498
- Depth (mm/cm/m)
- 0.19 mm
- Dimensions (Metric)
- 57.2 mm H x 0.19 mm D
- Height (in/ft/yd)
- 2.25 in
- Maximum Service Temperature °C
- 80 °C
- Minimum Application Temperature °C
- 10 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size
- 2.25 in H x 9 in W x 0.0073 in D
- Thickness (in/ft/yd)
- 0.0073 in
- Width (in/ft/yd)
- 9 in
Calculated Sign ShapeHorizontal Rectangle
Compatible Surface TypesLow Surface Energy
FinishSemi-gloss
LanguageEnglish
Number of Printed Sides1
Printer and Label ApplicationsWire & Cable
Reflective TypeNon-Reflective
Text Legend550 VOLTS
Adhesive TypeRepositionable Rubber
IlluminationNot Illuminated
LaminatedNot Laminated
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Depth (in/ft/yd)0.0073 in
Dimensions2.25 in H x 9 in W x 0.0073 in D
Dimensions 22.25 in H x 9 in W
Height (mm/cm/m)57.2 mm
Maximum Service Temperature °F176 °F
Minimum Application Temperature °F50 °F
Minimum Service Temperature °F-40 °F
Sign Size-General2.25 in x 9 in
Thickness (mm/cm/m)0.185 mm
Width (mm/cm/m)228.6 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
