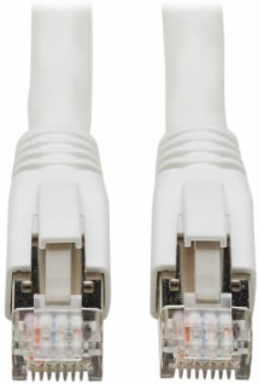

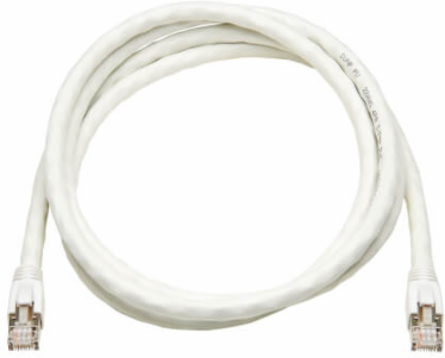

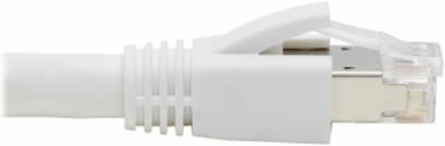

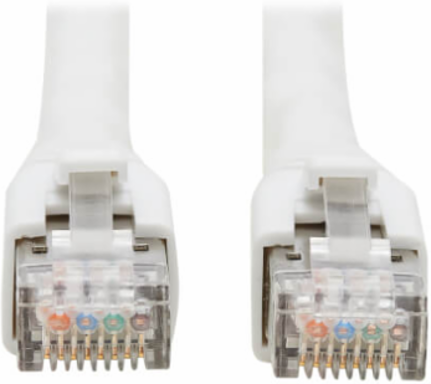

Tripp Lite N272F05WH Ethernet Patch Cable, Cat8, SSTP Shielded, 40G, PoE+, RJ45 M/M, White, 5 ft
- MPN: N272F05WH
- UPC: 037332281753
- PPN: TRP-N272-F05-WH
CAD
$19.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cat8 40G Snagless SSTP Ethernet Cable (RJ45 M/M), PoE, White, 5 ft. (1.5 m)
Documentation & Downloads
Specifications
Material
| Technology | Cat8 |
|---|---|
| Conductor Material | Stranded Copper |
| Cable Jacket Material | PVC |
| Cable Jacket Color | White |
| Cable Shielding | SSTP |
|---|---|
| Connector Plating | Nickel |
| Cable Jacket Rating | CM |
Dimensions
| Cable Length | 5 ft |
|---|---|
| Number of Conductors | 4 Pair |
| Side A - Connector | RJ45 (Male) |
| Connector Type | Snagless |
| Wiring Configuration | EIA/TIA 568B |
| Cable Outer Diameter | 6.0 mm |
|---|---|
| Conductor Gauge | 26 AWG |
| Side B - Connector | RJ45 (Male) |
| Connector Style | Straight |
Compliance
| IEEE Standards Supported | 802.3at |
|---|
| Product Warranty Period | Lifetime limited warranty |
|---|
Performance
| PoE Type | Type 2 PoE+ (30W, IEEE 802.3at) |
|---|---|
| Bandwidth per TIA Standard | 1000 MHz |
| Operating Temperature Range | 14° to 122°F (-10° to 50°C) |
| Operating Humidity Range | 0% to 90% RH, Non-Condensing |
| Network Compatibility | 40 Gbps |
|---|---|
| Maximum Bandwidth as Tested | 1200 MHz |
| Storage Temperature Range | -5° to 140°F (-15° to 60°C) |
| Storage Humidity Range | 0% to 90% RH, Non-Condensing |
