Fluke FLUKE 1550C/KIT Fluke 1550C FC 5 kV Insulation Tester Kit Fluke 1550C/Kit

Name: Fluke FLUKE 1550C/KIT Fluke 1550C FC 5 kV Insulation Tester Kit Fluke 1550C/Kit
Brand: Fluke
SKU: FLU-FLUKE-1550C/KIT

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

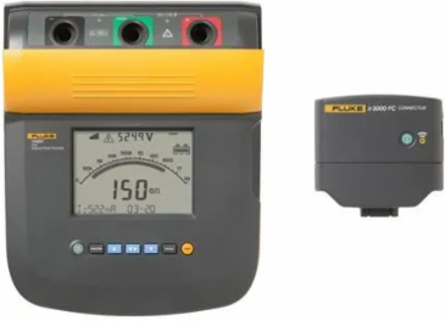

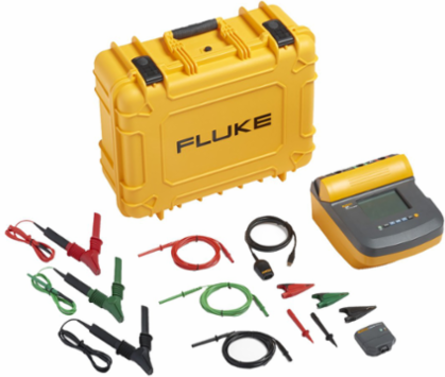

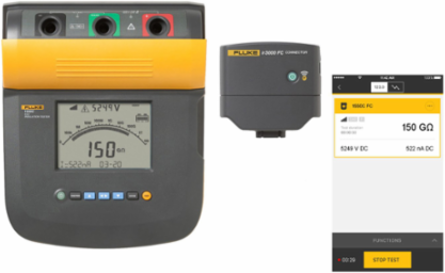

Fluke 1550C FC 5 kV Insulation Tester Kit Fluke 1550C/Kit

250 V Range	< 250 kΩ,250 kΩ to 5 GΩ5 GΩ to 50 GΩ> 50 GΩ
500 V Range	< 500 kΩ500 kΩ to 10 GΩ10 GΩ to 100 GΩ> 100 GΩ
1000 V Range	< 1 MΩ1 MΩ to 20 GΩ20 GΩ to 200 GΩ> 200 GΩ
2500 V Range	< 2.5 MΩ2.5 MΩ to 50 GΩ50 GΩ to 500 GΩ> 500 GΩ
5000 V Range	< 5 MΩ5 MΩ to 100 GΩ100 GΩ to 1 TΩ> 1 TΩ
Bar graph range	0 to 1 TΩ (1550C) - 0 to 2 TΩ (1555)
Induced AC mains current rejection	2 mA maximum
Discharge rate for capacitive load	1.5 s/μF
Leakage current measurement Accuracy	±(5% + 2 nA)
Capacitance measurement Accuracy	±(15% rdg + 0.03 μF)
Timer	Resolution setting: 1 minute \|\| Resolution indication: 1 second

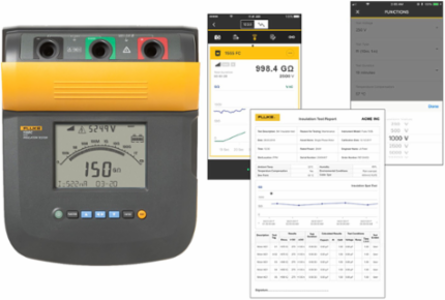

Software specifications	FlukeView Forms™ basic software requires a PC running Windows XP, Windows Vista , Windows 7 or Windows 8.

250 V	Accuracy (± reading): Unspecified5%20%Unspecified
500 V	Accuracy (± reading): Unspecified5%20%Unspecified
1000 V	Accuracy (± reading): Unspecified5%20%Unspecified
2500 V	Accuracy (± reading): Unspecified5%20%Unspecified
5000 V	Accuracy (± reading): Unspecified5%20%Unspecified
Insulation test voltage accuracy	-0%, +10% at 1 mA load current
Charging rate for capacitive load	5 seconds per μF
Leakage current measurement Range	1 nA to 2 mA
Capacitance measurement Range	0.01 μF to 15.00 μF
Timer Range	0 to 99 minutes
Live circuit warning	Warning range: 30 V to 660 V AC/DC, 50/60 Hz \|\| Voltage accuracy: ±(15% + 2 V)

Display	75 x 105 mm
Charger Input (AC)	85 V to 250 V AC 50/60 Hz 20 VA
Weight	3.7 kg (8.2 lb)
Temperature (storage)	-20°C to 65°C (-4°F to 149°F)
Altitude	2000 m
Input overload protection	1000 V AC
Safety compliance	IEC 61010-1: Overvoltage category II, Pollution Degree 2.IEC 61010-2-030: Measurement 600V CAT IV / 1000V CAT IIIIEC 61557-1, IEC 61557-2

Power	12 V lead-acid rechargeable battery, Yuasa NP2.8-12
Dimensions	269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
Temperature (operating)	-20°C to 50°C (-4°F to 122°F)
Humidity	80% to 31°C decreasing linearly to 50% at 50°C
Enclosure sealing	IP40
Electromagnetic compatibility	EN 61326
