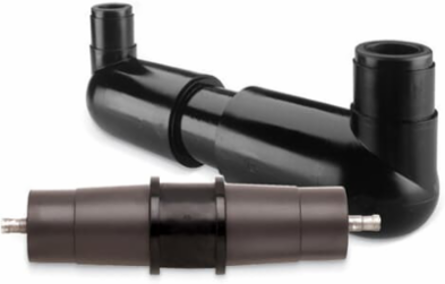

Thomas & Betts M05CLF180-6E2-SMB 5KV MOLDED CURRENT LIMITING FUSE

MPN: M05CLF180-6E2-SMB
UPC: 075114183970
PPN: T-B-M05CLF180-6E2-SMB
UNSPSC: 39121626

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Encapsulated Molded Current-Limiting Fuses, Nominal Fuse Voltage Rating 5.5kV, Current Rating Amps 180, option 6E2 - 600 Amp Elbow Connector on one end and a 200 Amp Bushing Well on the other end, SMB option - Support Mounting Bracket with Bolted style hold-down straps

Specifications

Ordering

Country of Origin	United States (US)

Selling Unit of Measure	each

Additional Information

Application	Suitable for Padmount, Subsurface or Vault Installations
Current Rating	180 A
Material	EPDM Molded Rubber
Product Name	ELECTRICAL FUSE
Size	Overall Length 19-5/8 in (498mm) x Width 5-1/8 in (130mm)
Standards	ANSI C37.40, ANSI C37.41, ANSI C37.47, IEEE 386

Brand / Label	Elastimold
Effective Date	20140715
Mounting Type	Clip
Product Type	Molded Current-Limiting Fuse
Special Functions	EPDM Molded Rubber Deadfront Contruction Insulates, Shields and Elimates Exposed Live Parts. Lightweight Fuses are Fully Sealed and Submersible. Specially Designed Fuse Elements with Built-in Low and High Current Interrupting Capability Provide Full Range Fault Current Protection thru 50kA. Current Limiting Protection limits the System Available Fault Current and Dramatically reduces Stresses on Equipment. Internal Fuse Sheild Prevents Corona and Deterioration of the Fuse Element.
Voltage Rating	5.5 kV
