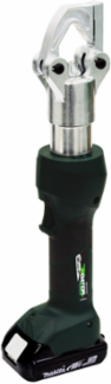

Greenlee EK6IDLX11 Dieless Crimper, 6 Ton Crimping Force, 8 AWG - 500 kcmil Cu, 15.75 Inch Length
- MPN: EK6IDLX11
- UPC: 783310610793
- PPN: GRN-EK6IDLX11
- UNSPSC: 27111518
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Dieless Crimper, 6 Ton Crimping Force, 8 AWG - 500 kcmil Cu, 15.75 Inch Length
Features
- Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
- Dual stage telescopic cylinder
- The EK6IDL consists of two individual pistons (large exterior and a small interior one). The interior small piston transmits a force of 30kN and features two functions.
- First it fixes cable lugs and connectors to the correct position prior to crimping operations
- Secondly it crimps smaller cross sections up to 1/0 AWG
- The large exterior piston transmits a force of 60kN and crimps all larger cross sections. Managed by Intelli-Crimp, the variable 30kN / 60kN cylinder safeguards that the optimal crimp performance is always being achieved regardless of the cross section. Extremely large crimp range is ensured, copper material 8AWG-500MCM and aluminum material 1/0AWG-350MCM.
- Compact design, low weight and heavy duty performance
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
- Sub Brand
- Gator
- Standard
- C/US UL Listed
- Overall Length
- 15.75 IN (400mm)
- Crimping Capacity
- Standard Strand, 500 kcmil (MCM) Copper, 350 kcmil (MCM) Al
Handle TypeIn-Line Style with over molded rubber grip
TypeDieless style crimper
Wire SizeStandard Strand, 8 AWG - 500 kcmil Cu, 1/0 AWG - 350 kcmil Al
Crimping ForceVariable 3-6 Ton (30-60 kN)
Connector TypeColor-coded lugs and splices
