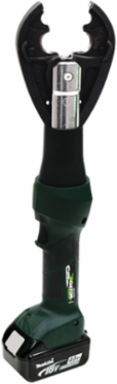

Greenlee EK425LXD11 Gator 6 Ton Battery-Powered Crimper, Die Style, 12,000 lbs Crimping Force, 18.5 Inch Length
- MPN: EK425LXD11
- UPC: 783310609179
- PPN: GRN-EK425LXD11
- UNSPSC: 27111518
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Gator 6 Ton Battery-Powered Crimper, Die Style, 12,000 lbs Crimping Force, 18.5 Inch Length
Features
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
- This cable crimper comes equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback to give the lineman as much useful data as possible.
- The EK425LX is operated with one hand, leaving the other hand free to position the cable and connector
- In-line tool style is lightweight and very easy to control
- The crimping jaws open wide to fit easily over connectors
- To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp
- The EK425LX will complete about 325 crimps per battery charge on 4/0 AWG splices
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
- Sub Brand
- Gator
- Standard
- C/US UL Listed
- Overall Length
- 18.5 IN (470mm)
- Crimping Capacity
- Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
Handle TypeIn-Line Style with over molded rubber grip
TypeDie style crimper
Wire SizeConnector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
Crimping Force12,000 lbs. (53 kN)
Connector TypeService entrance connectors, H-Taps, Tension splices, Jumper splices, Stirrups, Color coded lugs & splices
