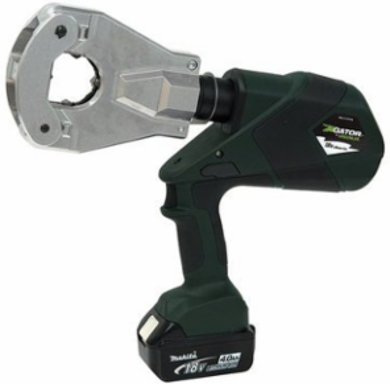

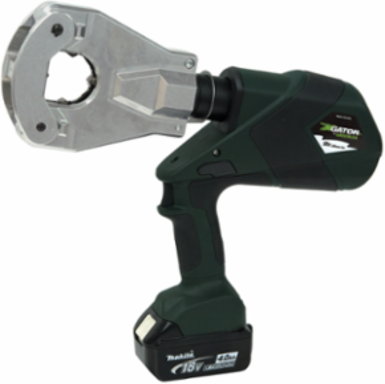

Greenlee EK6FTLX11 6 Ton Dieless Crimper, 6 AWG - 750 Kcmil, Bluetooth, 14.875 Inch Length
- MPN: EK6FTLX11
- UPC: 783310611196
- PPN: GRN-EK6FTLX11
- UNSPSC: 27111518
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
6 Ton Dieless Crimper, 6 AWG - 750 Kcmil, Bluetooth, 14.875 Inch Length
Features
- Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specificationsState of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle timesAutomatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energyLED light provides the operator with the battery charge and tool maintenance statusTwo-stage hydraulic system provides fast advance and power speeds, saving timeForward handle position improves tool balanceOne trigger controls all tool functionsCrimping head rotates 350°Tools automatically retract when the crimping cycle is completeOver molded tacky grip areas make gripping the tool easier and more comfortableLED work light illuminates dark work areasGreenlee battery-powered crimping tools now use bio-degradable oilSmart chargers control the charging current, charging voltage and battery temperature to maximize battery lifeUtilizes four indenters to make the crimpFlip-top style uses a pull pin to open head for easy removal from the connectorU.S. Patents #6,206,663 and #6,065,326 Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
- Sub Brand
- Gator
- Standard
- C/US UL Listed
- Overall Length
- 14.875 IN (378mm)
- Crimping Capacity
- 750 Kcmil (MCM) Cu & Al
Handle TypePistol Style with over molded rubber grip
TypeDieless style crimper
Wire Size6 AWG - 750 Kcmil Cu & Al
Crimping Force12,400 lbs. (55 kN)
Connector TypeColor-coded lugs and splices
