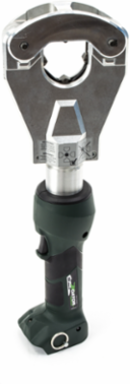

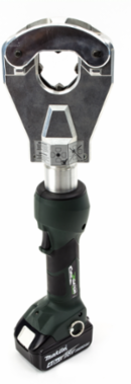

Greenlee EK6FTILX11 6 Ton Dieless Inline Quad Crimper, 19.5 Inch, 750 Kcmil, 120V Charger
- MPN: EK6FTILX11
- UPC: 783310085911
- PPN: GRN-EK6FTILX11
- UNSPSC: 27111518
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
6 Ton Dieless Inline Quad Crimper, 19.5 Inch, 750 Kcmil, 120V Charger
Features
- LED display screen communicating system pressure and battery levels as well as tool diagnostics with real-time tool feedback
- In line tool style is light weight and very easy to control
- One trigger controls all tool functions
- Cutting head rotates 360°
- Tools automatically retract when the crimping cycle is complete
- Equipped with Double Tap activation profile
- Over-molded tacky grip areas make gripping the tool easier and more comfortable
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany |
|---|---|
| Type | Dieless style crimper |
| Wire Size | 6 AWG - 750 Kcmil Cu & Al |
| Overall Length | 19.5 IN (495mm) |
| Crimping Capacity | 750 Kcmil (MCM) Cu & Al |

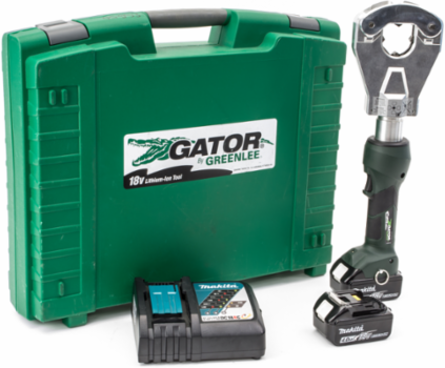

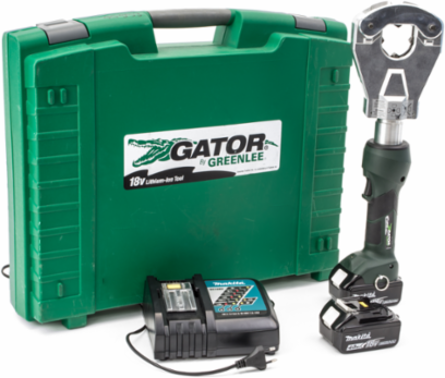

| Material | 120V Charger, Two 4.0Ah Batteries |
| Handle Type | In-Line style with over molded rubber grip |
|---|---|
| Standard | C/US UL Listed |
| Opening Size | Flip Top Head |
| Crimping Force | 12,400 lbs. (55 kN) |
| Connector Type | Color-coded lugs and splices |
