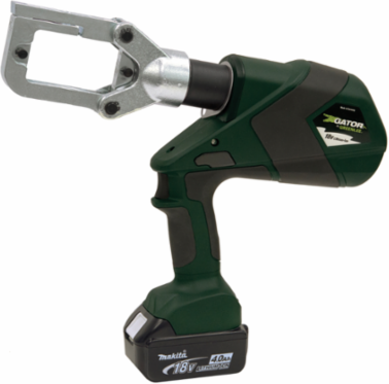

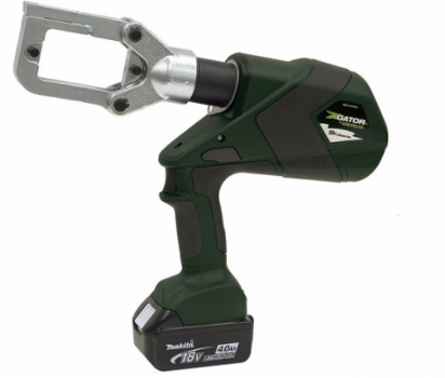

Greenlee E6CCXLX11 6 Ton Li-Ion Crimper, 12,000 lbs Force, 8 AWG - 600 kcmil Capacity, 14.75 Inch Length
- MPN: E6CCXLX11
- UPC: 783310611585
- PPN: GRN-E6CCXLX11
- UNSPSC: 27111518
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
6 Ton Li-Ion Crimper, 12,000 lbs Force, 8 AWG - 600 kcmil Capacity, 14.75 Inch Length
Features
- Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
- State Of The Art 18V Lithium Ion (Li-ion) Battery Provides 70% More Cycles Per Charge And Faster Cycle Times
- Retraction Stop Repeat (RSR) allows the operator to partially retract the ram and then the tool repeats the retraction for subsequent crimps
- LED light provides the operator with the battery charge and tool maintenance status
- Two-stage hydraulic system provides fast advance and power speeds, saving time
- Forward handle position improves tool balance
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
- Sub Brand
- Gator
- Standard
- C/US UL Listed
- Overall Length
- 14.75 IN (375mm)
- Crimping Capacity
- 600 kcmil (MCM) Copper, 350 kcmil (MCM) Al
Handle TypePistol Style with over molded rubber grip
TypeDie style crimper/cutter
Wire Size8 AWG - 600 kcmil Cu, 8 AWG - 350 kcmil Al
Crimping Force12,000 lbs. (53 kN)
Connector TypeColor-coded lugs and splices
