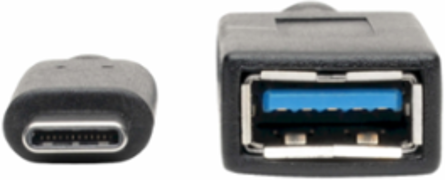

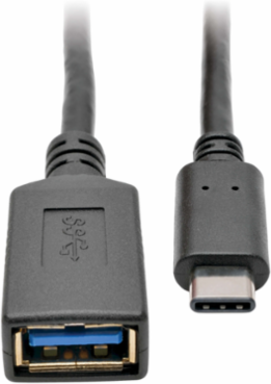

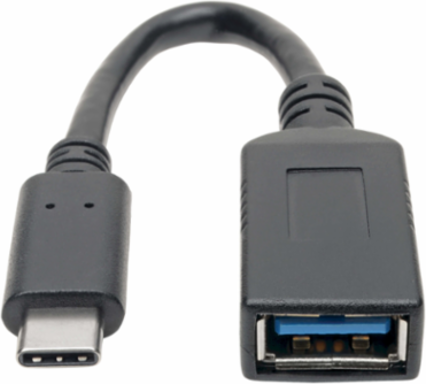

Tripp Lite U428-06N-F USB-C to USB-A Adapter, 6 Inch, USB 3.1 Gen 1 (5 Gbps), 3A Power Output
- MPN: U428-06N-F
- UPC: 037332189295
- PPN: TRP-U428-06N-F
CAD
$24.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Allows an existing Type-A device or cable to connect with the USB Type-C™ (USB-C) port on your smartphone, tablet, Ultrabook or computer.
Features
- Allows a male USB Type-A device or cable to connect with a USB Type-C (USB-C) device
- Supports USB 3.1 Gen 1 data transfer speeds up to 5 Gbps
- Provides power output up to 3A
- Features reversible USB Type-C male plug on one end
- Works with USB 3.0 devices
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Features & Specifications
| USB Specification | USB 3.1 Gen 1 (up to 5 Gbps) |
|---|
| Technology | USB 3.1 (Gen 1); USB |
|---|
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Side A - Connector 1 | USB C (MALE) |
|---|---|
| Connector Plating | Nickel |
| Side B - Connector 1 | USB 3.0 A (FEMALE) |
|---|---|
| Contact Plating | Gold |
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Color | Black |
| Shipping Dimensions (hwd / in.) | 7.00 x 9.00 x 0.50 |
| Cable Outer Diameter (OD) | 4.5MM |
|---|---|
| Material of Construction | PVC |
| Shipping Weight (lbs.) | 0.05 |
Input
| Cable Length (ft.) | 0.5 |
|---|---|
| Cable Length (cm) | 15.24 |
| Cable Length (in.) | 6 |
|---|
Environmental
| Operating Temperature Range | 14 to 140 F (-10 to 60 C) |
|---|---|
| Relative Humidity | 10% to 85%, Non-Condensing |
| Storage Temperature Range | -4 to 185 F (-20 to 85 C) |
|---|
Overview
| UPC Code | 037332189295 |
|---|
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
